Product Details:

Place of Origin: Guangdong, China
Brand Name: Topshine/Neutral
Certification: ce, FCC, RoHS
Model Number: VT310N

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: $40.00/Sets-$55.00/Sets
Packaging Details: Neutral box (23*16*6cm) Unit weight: 0.58Kg
Delivery Time: sample within 1-3 days,bulk order within 3-10 days
Payment Terms: Western Union, T/T, MoneyGram,PayPal
Supply Ability: 10000 sets monthly
Get Best Price Contact Now

Detail Information

Data Logger: Built-in 4MB Data Logger Fuel Sensor: Fuel Monitoring Consumption/fuel Report
Alcohol Sensor: Alcohol Alarm GPRS Internet: 2g
Relay: Cut Off Engine Remotely Sos Button: Sos Alarm
GPS Tracking Software: Web Base/Android/ Ios APP Microphone And Speaker: Two Way Communicate
Acc Detection: Engine On/off Status Over Speed: Over Speed Alarm
Warranty: 2 Years Geo Fence: Geo Fence Alarm
Firmware Update: USB Input Voltage (V DC): 9 ~ 36V
High Light:

Fleece Management GPS Vehicle Tracker

,

GPS Vehicle Tracker Device

,

Fleece Management auto tracking device

Product Description

Fuel Level Monitoring Crash Sensor for Accident Alarm Vehicle GPS Tracker




VT310N is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, VT310N has good sensitivity and stable performance. Especially, VT310N is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet.








Application

* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
* Anti jamming
* 3G



Specification



Technical Parameters:
Power Supply +9V - +35V / 1.5A
Backup Battery 850mAh
Dimension 105*62*25
Weight 180g
Operating temperature -20° to 65° C
Humidity 5% to 95% Non-condensing
Frequency 850/900/1800/1900Mhz
GPS Module latest GPS SIRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 meters, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Altitude Limit 18,000 meters (60,000 feet) max.
Velocity Limit 515 meters/second (1000 knots) max.
LED 2 LED lights to show GPS/GSM working status.
Flash Memory 4MB
Interface 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.





Packing Measures:
Neutral Dimension (mm) Weight (KG) Capacity
Box 225x160x55 0.58 1 set
Carton 470x340x310 14 20 sets







Feature



vehicle GPS tracking Fuel stolen alarm
GPS tracker + RFID car alarm Harsh braking / acceleration alarm
GSM jamming detection, anti jamming With 850mAh inbuilt rechargeable battery
Ublox7 GPS industrial high sensitive module Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc
Max 2 fuel sensors, monitor petrol level (Optional) Powerful and multifunctional tracker for comprehensive Fleet management
Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area Get real time vehicle position address street name /Google map link by SMS
cut off engine remotely ,unlock lock vehicle door Crash sensor for accident alarm (Optional)






















GPS 11

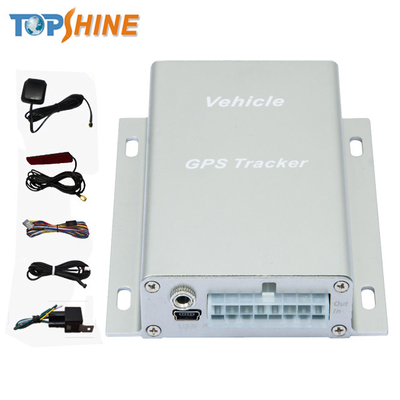

Package & Accessories



VT310N unit: 1 unit
Wire : 1 piece
Relay: 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece






6

Optional accessory :


* Fuel sensor
* Temperature sensor
* Passive RFID kit
* Crash sensor
* Door sensor
* Alcohol Sensor
* Speed Limiter













Web base gps tracking platform



GPS tracking platform



Android APP GPS tracking platform


APP



Our Advantage



* Provide 2 free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.














Payment & Shipment:



Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.










om



Topshine Company



_03









Why the Quality of our GPS tracker is better than others :





We use 100% made of industrial-grade component,GSM module have certified(CE2200) FCC and with legal IMEI code,High quality GPS/GSM module can bear temperature -20°C~75°C,Longer working life.





Those cheap device in the market is use poor quality and second hand component like MTK solution,do not have CE/FCCcertificate.Even no legal IMEI code. Easy to burn down ,no mention to can not bear high temperature ,some working half of year even several months will burnt .
And It is assembly line production, unable to customize new function if you have new need in future.
