Product Details:

Place of Origin: Guangdong, China
Brand Name: Topshine/Neutral
Certification: ce, FCC, RoHS
Model Number: VT200

Payment & Shipping Terms:

Minimum Order Quantity: 5 Sets
Price: $49.00/Sets 5-99 Sets
Packaging Details: Unit weight: 0.42Kg<br>Neutral color or white box<br>(23*16*6cm)
Get Best Price Contact Now

Detail Information

Model: Gazelle Year: 2003-2010, 2003-2016, 2008-2010, 2005-2013, 1993-2001, 2010-2016, 1993-2016, 2007-2016
Type: GPS Tracker Placement: Windshield
Car Fitment: Gaz OS: No System
Screen Type: NO Resolution: 1280*720
Function: Vehicle Tracking Combination: Vehicle Tracking
Connection: Vehicle Tracking Warranty: 2 Years
Use: Automotive Input Voltage (V DC): 9 ~ 36
Free GPS Tracking Software: Web Base &Android APP Is_Customized: Yes
Support Fuel Sensor: 1 Size (cm): 75*53*25
GSM Module: M35 Weight (g): 197
Output Port: 2 Input Port: 3
Built-in Data Logger: 2MB

Product Description

Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor
( VT200)



(* Free GPS tracking platform lifetime   * 2 years warranty   * 1 day delivery  * High Quality  * Factory price)





Application


1. Vehicle tracking & security
2. Fleet Management
3. Equipment tracking
4. Asset tracking
5. RFID automatical anti-theft(optional)




Specification





Items

Specifications

Dimension

75*54*25mm

Weight

123g

Charging Voltage

 9V~24V

SIM card type

3V

Power consumption

Active mode(peak) < 1.0A     Active mode(avg.) < 300mA

Operating Temperature

-20℃~+ 75℃

Humidity

Up to 75% non-condensing

External Antenna

Connected via 50 coax connector

  External SIM Card

Connected via SIM card connector

Button

1 SOS and 1 power on/off

Microphone

Default

Transmit Power

Class 4(2W) for E-GSM 900 and 850

Class 1(1W) for DCS 1800

Class 1(1W) for PCS 1900

Sensitivity

-104dBm minimum for E-GSM 900 AND 850

-102dBm minimum for DCS 1800

-102dBm minimum for PCS 1900

GPRS

Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)

Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)

Maximum download speed is 85.6kbps

Maximum upload speed is 21.4kbps

Speech Codec

Triple rate Codec  Half rate—ETS 06.20

Full rate—ETS 06.10     Enhance full rate—ETS 06.50/06.06/06.08

I/O

2 Digital Inputs ( 1positive triggering and 1negative triggering)

1 Analog Input  2 Outputs







Features



*Super cost-effective GPS tracker + smart car alarm + two way locator + GSM Jamming detector + driver identifier * Smart phone BT control car alarms,Arm/disarm automatically,do not need to wear any remote or ID card
* Driver identification,illegal driver can not drive the vehicle
* Compatible with the original car remoter                                                                                * It will be triggered alarm when the car door be opened /be moved /start ignition
*Engine cut-off to stop the car in safe condition
*Voice listening in (Optional)
*Temperature sensor (Optional)
*Ccrash sensor (Optional)
*Fuel sensor to monitor fuel value (Optional)
* Real time tracking via SMS or GPRS (TCP/UDP)
* Auto tracking by Time/Distance/Angle interval (Web Platform)
* Get position Google Map link / street name via SMS
* Internal 2MB Data logger for GSM/GPRS network blind area
* Built-in motion sensor for power saving
* SOS panic button
* Geo-fencing alarm / Over-Speed alert/external power cut off alarm
* Internal 650mAh backup battery
















Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 0

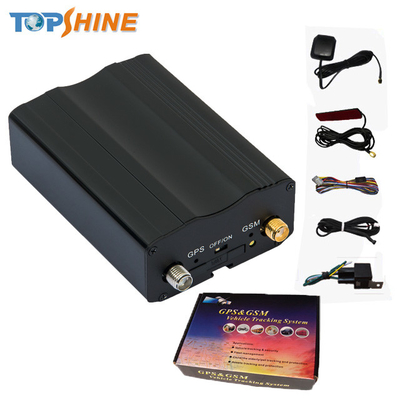

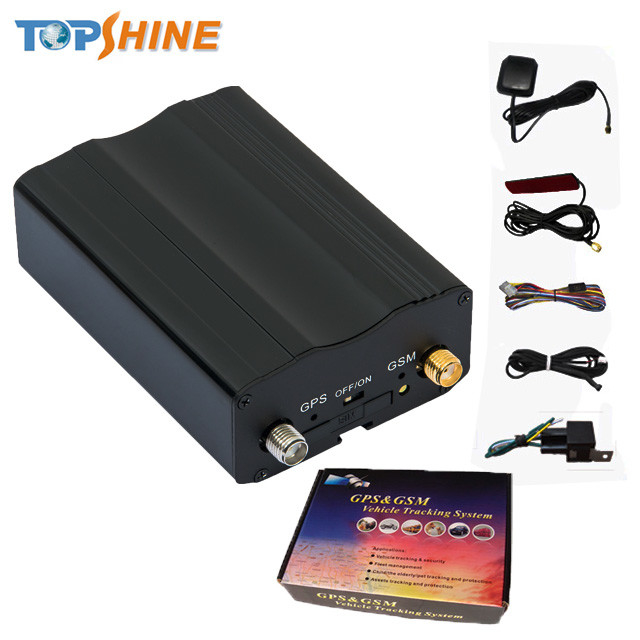

Package and Standard  accessory



VT200 GPS trakcer: 1pc
GSM antenna: 1pc
GPS antenna: 1pc

SOS button: 1pc
Wiring: 1pc
Relay(12V/24V): 1pc

Microphone: 1pc



 Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 2

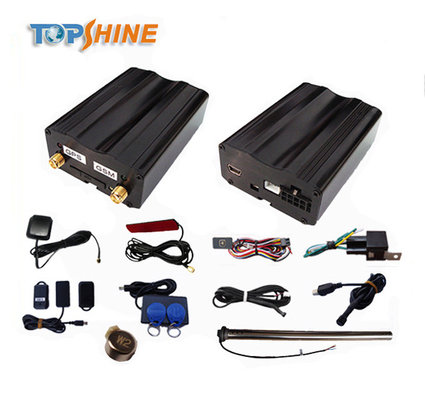

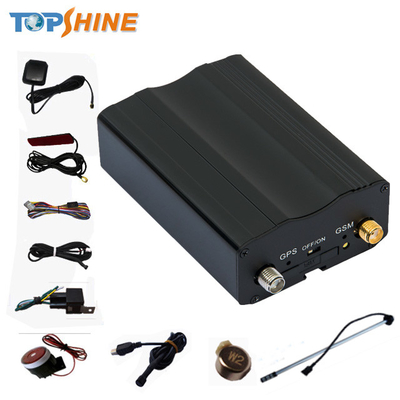

Optional Accessories

Fuel sensor
Temperature sensor
Crash sensor
Smart phone reader

Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 4







Welcome to test our free tracking software



Web base : https://www.track-car.com/
Mobile Phone: https://www.track-car.com/M
User name: officetest
Password: 123

Web base gps tracking platform

 Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 6
Android APP GPS tracking platform


Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 8

Our Advantage


* Provide 2 free Tracking Platfrom (web base  base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.



Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 10Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 12



Payment & Shipment

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.



Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 14



Certificate :



 Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 16                              m

Topshine Company

Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 18

Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 20

Internal Backup Battery Vehicle GPS tracker with Temperature Sensor Crash Sensor 22
