Most powerful & multifunctional GPS Tracker Support OBD2 connector with Fuel Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | Topshine/OEM/ODM |
| Certification: | ce, FCC, RoHS |
| Model Number: | VT1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | $65.00/Pieces |
| Packaging Details: | Neutral color or white box (22*16.5*5.5cm), Unit weight: 0.62Kg, 32 units/Carton |
| Delivery Time: | 1-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 10000 Unit/Units per Month |
|
Detail Information |
|||
| Function: | Remote Control, Distance Warning, Speed Warning, Support OTA, Support OBD II, Two Way Communications, Harsh Braking/Acceleration Alarm, Real Time Positioning, Geo Fence, Power Cut Alarm, Driver ID Identification, Fleet Management, Support Idle Alarm | Connection: | 2G/3G/4G Sim Card |
|---|---|---|---|
| Warranty: | 2 Years | Use: | Automotive |
| Feature: | GPS+Anti-theft+real Time Tracking | Two Way Communications: | Yes |
| Driver ID Identify: | Yes | Geo-fence/Over Speed Alert: | Yes |
| Power Cut Off Alert: | Yes | Crash Sensor: | Yes |
| Battery: | 850mAh | OBD2 Connector: | Yes |
| RFID Car Alarm: | Yes | Port: | GuangZhou |
Product Description
Most powerful & multifunctional GPS Tracker Support OBD2 connector with Fuel Sensor
Tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM7 high speedy microprocessor; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
|
Technical Parameters:
|
|
|
|
Power Supply
|
+12V - +90V / 1.5A
|
|
|
Backup Battery
|
850mAh
|
|
|
Dimension
|
130mm x 68mm x30mm
|
|
|
Installation Dimension
|
130mm x 68mm x 30mm
|
|
|
Weight
|
197g
|
|
|
Operating temperature
|
-20° to 75° C
|
|
|
Humidity
|
5% to 95% Non-condensing
|
|
|
2G GSM Frequency
|
850/900/1800/1900Mhz
|
|
|
3G GSM Frequency
|
Version A: UMTS/HSDPA 850/1900MHz
Version E: UMTS/HSDPA 900/2100MHz Version T: UMTS/HSDPA 850/2100MHz |
|
|
GPS Module
|
latest GPS SIRF-Star III chipset
|
|
|
GPS Sensitivity
|
-158Db
|
|
|
GPS Frequency
|
L1, 1575.42 MHz
|
|
|
C/A Code
|
1.023 MHz chip rate
|
|
|
Channels
|
20 channel all-in-view tracking
|
|
|
Position Accuracy
|
10 meters, 2D RMS
|
|
|
Velocity Accuracy
|
0.1 m/s
|
|
|
Time Accuracy
|
1 us synchronized to GPS time
|
|
|
Default datum
|
WGS-84
|
|
|
Reacquisition
|
0.1 sec., average
|
|
|
Hot start
|
1 sec., average
|
|
|
Warm start
|
38 sec., average
|
|
|
Cold start
|
42 sec., average
|
|
|
Altitude Limit
|
18,000 meters (60,000 feet) max.
|
|
|
Velocity Limit
|
515 meters/second (1000 knots) max.
|
|
|
LED
|
2 LED lights to show GPS/GSM working status.
|
|
|
Flash Memory
|
4MB
|
|
|
Interface
|
5 digital inputs, 3 negative and 2 positive triggering;
2 analog inputs; 5 outputs. |
|
Details Images
Functions of VT1000:
* Built in speed limiter into the GPS tracker
* Limit the vehicle speed within the controllable range
* GPS tracker + RFID car alarm
* Support OTA(Update software over the air firmware by SMS)
* Two way tracking, GPS/intelligent GSM positioning
* Support SD card data logger
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
*Support fuel stolen alarm
* Support max 4 cameras, Photo logger function with location & driving information
* Support crash sensor for accident alarm
* Powerful and multifunctional tracker for comprehensive Fleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery
* Limit the vehicle speed within the controllable range
* GPS tracker + RFID car alarm
* Support OTA(Update software over the air firmware by SMS)
* Two way tracking, GPS/intelligent GSM positioning
* Support SD card data logger
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
*Support fuel stolen alarm
* Support max 4 cameras, Photo logger function with location & driving information
* Support crash sensor for accident alarm
* Powerful and multifunctional tracker for comprehensive Fleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery

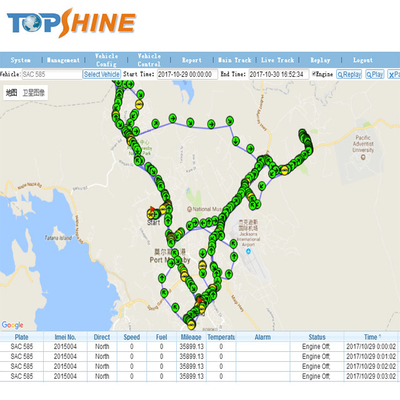

Tracking Platform
Our Service
* Provide free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
ail:sales1@gztopshine.comWant to Know more details about this product
