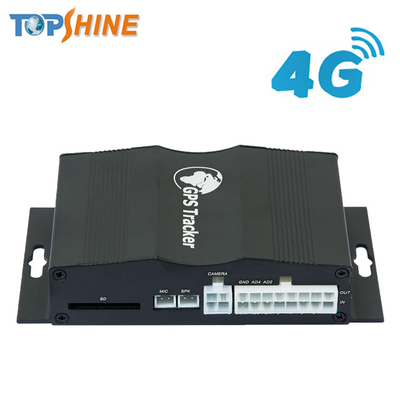

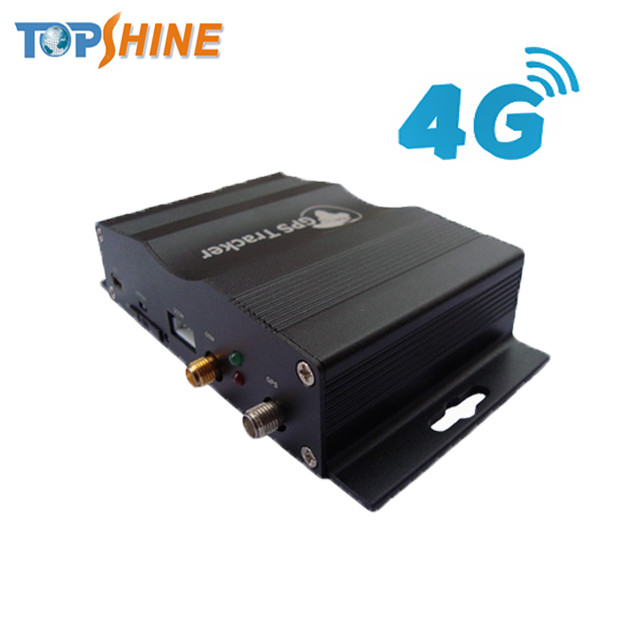

ARM9 Vehicle Gps Tracker With Weight Rs485 RS232 Button Fuel Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Topshine(Support OEM/ODM) |
| Certification: | ce, RoHS |
| Model Number: | 4G VT1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | $75.00/Sets |
| Packaging Details: | Neutral color or white box(23*16*6cm),Unit weight: 0.65kg |
| Delivery Time: | 1-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 100000 Piece/ per Month |
|
Detail Information |
|||
| CPU: | ARM9 High Speedy Microprocessor | GSM Frequency: | Legal IMEI & CE |
|---|---|---|---|
| Connection: | 4G Sim Card | Software: | Free Tracking Platform |
| Function: | Photo Viewer, Remote Control, Distance Warning, Speed Warning, Real Time 4G Gps Tracking | Memory: | 4MB Data Logger |
| Backup Battery: | 3.7V/1000mAh | Power Voltage: | 9V~90V |
| Warranty: | 2 Years | GPS Sensitivity: | -158dBm |
| Position Accuracy: | 10 Meters, 2D RMS | Fuel Consumption: | Support |
| Camera: | Support | ||
| High Light: | ARM9 Vehicle Gps Tracker,RS232 Vehicle Gps Tracker,Fuel Monitoring Vehicle Gps Tracker |
||
Product Description
Vehicle Gps Tracker With Weight Rs485 RS232 Ibutton Usage Multifunction High Temperature Sensor Fuel Monitoring
Q: How to monitor the GPS Tracker?
A: User can login the web gps tracking software and Phone IOS/Android Tracking APP to monitor their vehicle or pets or kids respectively at real time.
Q: Can I have admin account at the gps tracking system and any monthly cost?
A: We shall offer you admin account so you can create subaccount. No monthly or yearly subscription charge for long term business.
Q: How much data is needed per month?
A: Per real test, a month 30 Mb GPRS data plan is enough. For voice recording device, it may need more depending on the frequency of voice message.
Q: Do you offer branded service?
A: YES.
Software: We can support clients with customized URL. Need yearly order above 1000 units.
Hardware. We offer logo printing on both GPS tracking device and Packing box. MOQ is 200 pcs.
Q: How do you support me and what is the warranty?
A: We offer real time support by Phone, Email and Whatsapp. 24 months warranty available.
Q: What is minimum order quantity?
A: We advise clients to take one piece for testing purpose.
Features of Topshine 4G tracker VT1000 Multi functions:
Hardware Features:
1 Frenquencies LTE-FDD B1/B3/B5/B8
3 Digital 5 Inputs
4 Digital 5 Output
5 RS232 or RS485 interface for ibutton reader or temperature sensor or weight sensor
6 Built-in Backup 1000mAh Battery
7 Real-time Tracking by Web and APP
8 OTA
9 Dual core CPU
10 9V to 90V DC power supply
11 Fatigue driving monitoring (OP)
12 Vehicle collision and harsh driving alarm (OP, need connect CAN box)
Software Features:
1 Real time tracking by Web and APP
2 Geo-fence
3 History report and Playback
4 Fuel consumption/ leak / adding report (Support at most 5 RS232 connection sensors)
5 Temperature monitoring (Support at most 4 channel temperature sensors)
6 Weight sensor (0 to 100T. Above 100T need customization)
7 Location Report
8 Mileage Overview and Mileage Month report
9 Parking report
10 Ignition Status report
11 Rotation sensor report
12 Device Online/Offline report Daily and Monthly
13 Engine idle report
14 Sub user management
1 Frenquencies LTE-FDD B1/B3/B5/B8
B1/B3/B5/B7/B8/B20/B28
LTE-TDD B34/B38/B39/B40/B41
B38/B40/B41
GSM B3/B8 B2/B3/B5/B8
2 High Performance External Antennas3 Digital 5 Inputs
4 Digital 5 Output
5 RS232 or RS485 interface for ibutton reader or temperature sensor or weight sensor
6 Built-in Backup 1000mAh Battery
7 Real-time Tracking by Web and APP
8 OTA
9 Dual core CPU
10 9V to 90V DC power supply
11 Fatigue driving monitoring (OP)
12 Vehicle collision and harsh driving alarm (OP, need connect CAN box)
Software Features:
1 Real time tracking by Web and APP
2 Geo-fence
3 History report and Playback
4 Fuel consumption/ leak / adding report (Support at most 5 RS232 connection sensors)
5 Temperature monitoring (Support at most 4 channel temperature sensors)
6 Weight sensor (0 to 100T. Above 100T need customization)
7 Location Report
8 Mileage Overview and Mileage Month report
9 Parking report
10 Ignition Status report
11 Rotation sensor report
12 Device Online/Offline report Daily and Monthly
13 Engine idle report
14 Sub user management
|
Technical Parameters:
|
|
|
|
Product name
|
4G GPS tracker VT1000
|
|
|
Power Voltage
|
+9V - +90V / 1.5A
|
|
|
Backup Battery
|
850mAh
|
|
|
Dimension
|
130*68*30
|
|
|
Weight
|
197g
|
|
|
Operating temperature
|
-20° to 75° C
|
|
|
Humidity
|
5% to 95% Non-condensing
|
|
|
GSM module
|
Legal IMEI & CE
|
|
|
CPU
|
ARM9 high speed microcontroller
|
|
|
GPS Sensitivity
|
-158Db
|
|
|
GPS Frequency
|
L1, 1575.42 MHz
|
|
|
C/A Code
|
1.023 MHz chip rate
|
|
|
Channels
|
20 channel all-in-view tracking
|
|
|
Position Accuracy
|
10 meters, 2D RMS
|
|
|
Velocity Accuracy
|
0.1 m/s
|
|
|
Time Accuracy
|
1 us synchronized to GPS time
|
|
|
Default datum
|
WGS-84
|
|
|
Reacquisition
|
0.1 sec., average
|
|
|
Hot start
|
1 sec., average
|
|
|
Warm start
|
38 sec., average
|
|
|
Cold start
|
42 sec., average
|
|
|
Altitude Limit
|
18,000 meters (60,000 feet) max.
|
|
|
Velocity Limit
|
515 meters/second (1000 knots) max.
|
|
|
LED
|
2 LED lights to show GPS/GSM working status.
|
|
|
Flash Memory
|
4MB
|
|
|
Interface
|
5 digital inputs, 5 output,4 analog input ,1 microphone port ,1 speaker port ,1 camera port ,1 RS23 port ,1 USB port
|
|
Features
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobilephone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
Multiple alarms and optional features:
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Engine on alarm (optional)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobilephone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Door open/close status detecting/ control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even noGPRS signal
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even noGPRS signal
Multiple alarms and optional features:
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Engine on alarm (optional)
* Door open/close status detecting/ control
* Harsh braking and harsh acceleration alarm
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Harsh braking and harsh acceleration alarm
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Limit the vehicle speed (Optional)
* OBDII connector to diagnonsis vehicle data (Optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Support 4G SD card store data and pictures (optional)
* Photo with location & driving information log function (need camera support)(optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support)(optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage (optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Support 4G SD card store data and pictures (optional)
* Photo with location & driving information log function (need camera support)(optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support)(optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage (optional)
Accessories
|

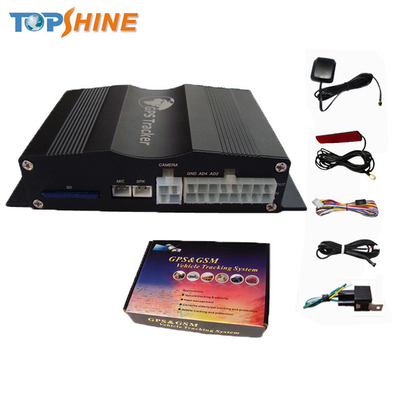

Standard accessories
|
|
1 pc main unit VT1000-4G
|
|
1 pc GSM antenna
|
|
1 pc GPS antenna
|
|
1 pc 12v/24v relay
|
|
1 pc 16pin wiring
|
|
1 pc microphone
|
|
1 pc built in battery
|
|

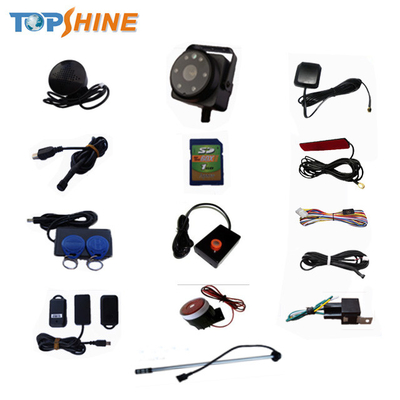

Optional accessories
|
|
Ultrasonic fuel sensor
|
|
Cuttable fuel sensor
|
|
Temperature sensor
|
|
Crash sensor
|
|
Weight sensor
|
|
Passive RFID reader & card
|
|
Active RFID reader & tag
|
|
OBDii connector
|
|
Speed limiter
|
|
Camera
|
|
SD card
|
|
Speaker
|
|
LCD screen
|
|
Siren
|
|
Configure USB cable
|
Our Service
* Provide free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment
Payment Term: PayPal /western union /TT/RMB/Alibaba insurance
Shipping Term: DHL /Fedex /TNT /ARAMEX/air transportation/sea transportation
Lead time: Samples within 1-3 day of delivery.bulk production within 4-15days of delivery.
Shipping Term: DHL /Fedex /TNT /ARAMEX/air transportation/sea transportation
Lead time: Samples within 1-3 day of delivery.bulk production within 4-15days of delivery.
