Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor

Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor

Product Details:

Place of Origin: Guangdong, China
Brand Name: Topshine/Neutral
Certification: ce, FCC, RoHS
Model Number: 4G VT1000

Payment & Shipping Terms:

Minimum Order Quantity: 5 Sets
Price: $115.00/Sets 5-99 Sets
Packaging Details: Unit weight: 0.62Kg<br>Neutral color or white box<br>(23*16*6cm)
Get Best Price Contact Now

Detail Information

Year: 1987-1999 Model: 1000.3W
Type: GPS Tracker Placement: Windshield
Car Fitment: LAMBORGHINI - INDUSTRIAL OS: No System
Screen Type: NO Resolution: 1280*720
Function: Vehicle Tracking + Car Alarm Combination: Vehicle Tracking + Video Monitoring+Car Alarm
Connection: 3G/4G Sim Card, Built-in WiFi, 5G Sim Card, 2G Sim Card Warranty: 2 Years
Use: Automotive Is_Customized: Yes
Camera Video Monitoring: Yes Inbuilt Multiple WiFi Hotspot: Yes
Size (mm): 130*68*30 Weight (G): 197
Harsh Acceleration/Brake: Yes Backup Battery: 850 MAh
RS232 COM: 1 Output Port: 5
Input Port: 5

Product Description

Customizable 4G GPS Tracker Inbuilt Multi WiFi Hotspot Access RS232 Port Fuel Sensor

(Model :4G VT1000)

(2 years warranty, Free Tracking Platfrom (web base & Android),CE & RoHS & SGS certification)





4G Vehicle GPS Tracker+WiFi Hotspot

It apply for Vehicle Video Monitoring ,Car Hotspot ect solution .
Support 20+ pcs WiFi cameras ,Simply installation and Flexible Connection,Can remote real time monitoring multiple cameras video by APP and PC .
WiFi camera with built-in microphone and speaker ,like video phone ,can support two way communication .

Support WiFi access for passenger



Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 0






Products Overview

VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.








Application

* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
*4G





Specification






Technical Parameters:
Power Supply +9V - +35V / 1.5A
Backup Battery 850mAh
Dimension 130*68*30
Weight 150g
Operating temperature -20° to 75° C
Humidity 5% to 95% Non-condensing
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 meters, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Altitude Limit 18,000 meters (60,000 feet) max.
Velocity Limit 515 meters/second (1000 knots) max.
LED 2 LED lights to show GPS/GSM working status.
Flash Memory 4MB

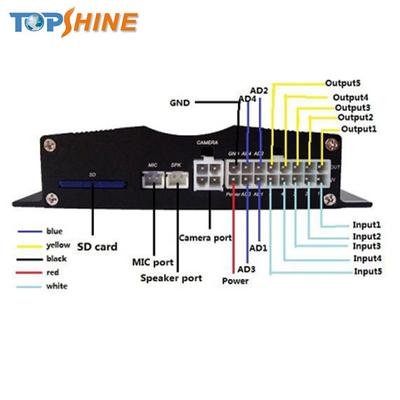

Interface 5 digital inputs, 5 output,4 analog input ,1 microphone port ,1 speaker port ,1 camera port ,1 RS23 port ,1 USB port



Packing Measures:
Neutral Dimension (mm) Weight (KG) Capacity
Box 225x160x55 0.62 1 set
Carton 470x340x310 14 20 sets







Feature






Support 4G network     Fuel stolen alarm
GPS tracker + RFID car alarm   Harsh braking / acceleration alarm
GSM jamming detection, anti jamming   With 850mAh inbuilt rechargeable battery
Ublox7 GPS industrial high sensitive module Two way tracking, GPS/intelligent GSM positioning
OTA (Update software over the air firmware by SMS) Powerful and multifunctional tracker for comprehensive Fleet management
Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area Get real time vehicle position address street name /Google map link by SMS
SD card data logger (Optional)  Crash sensor for accident alarm  (Optional)
Max 4 fuel sensors, monitor petrol level   (Optional)   OBD2 connector to read DTC data from ECU car computer (Optional)
Max 4 cameras, Photo logger function with location & driving information  (Optional) Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function   (Optional)
 Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc cut off engine remotely ,unlock lock vehicle door











Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 2

Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 4Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 6



Package & Accessories

VT1000  unit: 1 unit
Wire : 1 piece
Relay:  1 piece
Microphone : 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece



Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 8



Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 10
Optional accessory :

* Camera
* Fuel sensor
* Temperature sensor
* Passive RFID kit
* SD card
* Crash sensor
* Smart phone reader
* OBDII
* Door sensor
* Alcohol Sensor
* Speed Limiter



WiFi camera






Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 12








APP Real-Time Video Monitoring






PC Monitoring:


Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 14






Welcome to login GPS Tracking System to Experience Function


Web base : https://www.track-car.com/
Mobile Phone: https://www.track-car.com/M
User name: officetest
Password: 123




Web Base GPS Tracking Platform


Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 16


Android APP GPS tracking platform





Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 18





What can we provide for you :

* Provide 2 free Tracking Platfrom (web base  base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Strong engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.



Payment & Shipment:

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.







Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 20



Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 22




Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 24









Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 26Customizable 4G GPS Tracker built-in Multi WiFi Hotspot Access RS232 Port Fuel Sensor 28
