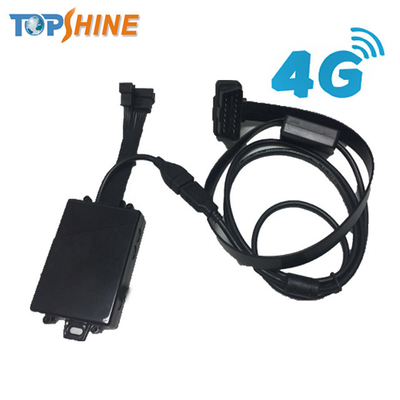

Fleet Management 4G Vehicle GPS Tracker with Latest Ultrasonic Fuel Sensor
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Topshine/OEM/ODM |
| Certification: | ce, FCC, RoHS |
| Model Number: | MT100 |
Payment & Shipping Terms:
| Price: | $85.00/Sets 1-99 Sets |
|---|---|
| Supply Ability: | 10000 Set/Sets per Month |
|
Detail Information |
|||
| Type: | GPS Tracker | Placement: | PORTABLE |
|---|---|---|---|
| OS: | WinCe 6 | Screen Type: | No Screen |
| Resolution: | 1280*720 | Function: | Other, Remote Control, Distance Warning, Speed Warning, Support Limit The Vehicle Speed, Harsh Braking / Acceleration Alarm, Support OTA, Driver Identification, Remotely Immobilizing Vehicle, Accident Alarm, Two Way Communications, SOS Panic Button, 6 Auth |
| Combination: | Other | Connection: | 3G/4G Sim Card |
| Warranty: | 2 Years, 2 Years | Use: | Automotive |
| Port Number: | 2 Input, 3 Output, 1 Analog Input | Network: | 4G |
| Waterproof: | Yes | Battery: | 650mAh |
| Feature: | GPS+Anti-theft+real Time Tracking | Platform: | Free |
| Can Be Customized: | Yes | SOS Button: | Yes |
| Port: | Guangzhou | ||
Product Description
Products Description
Fuel Monitoring Waterproof Motorcycle/Vehicle 3G GPS Tracker with Engine Idle Alert
MT100-4G is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 9V~37V,therefore can satisfy tracking and security demands for all kinds of vehicles.
|
Items
|
Specifications
|
|
Dimension
|
80*58*22mm
|
|
Weight
|
92g
|
|
Charging voltage
|
+9V~+37V
|
|
SIM Card type
|
3V
|
|
Power consumption
|
Active mode(peak)<1.0 A
Active mode(avg.)<300 Ma Idle mode <50 mA |
|
Operating temperature
|
-20~+75 centigrade
|
|
Humidity
|
Up to 75% non-condensing
|
|
External SIM card
|
Connected via SIM card connector
|
|
External Antenna
|
Connected via 50 ohm coax connector
|
|
Button
|
1 SOS and 1 power on/off
|
|
Microphone
|
Optional
|
|
Transmit power
|
Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900 |
|
Sensitivity
|
-104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900 |
|
GPS chip
|
Latest GPS SIRF-Star IIIchipset
|
|
GPRS
|
Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps |
|
Speech Codec
|
Triple rate Codec
Half rate_ETS 06.20 Full rate_ETS 06.10 Enhance full rate_ETS 06.50/06.06/06.08 |
|
I/O
|
3 Output, 2 Input, 1 Analog input and 1 RS232 port
|
|
I/O
|
2 Input 1 Output
|
Details Images
Functions of MT100-4G:
* Support limit the vehicle speed within the controllable range
* support 4G network
* support harsh acceleration/braking alarm
* support active/passive RFID for anti-theft function and driver identification
* Support smart phone RFID, connect smart phone and automatically arm/disarm to protect the vehicle
* support OTA(update new firmware over the air by SMS)
* support cut off engine from remote by SMS/GPRS
* Real time tracking by SMS/GPRS (Web Platform)
* support microphone and speaker customizable for two way communications
* support crash sensor for accident alarm
* support fuel sensor to manage fuel level
* Mini size, waterproof, built-in antennas for easy installation and concealment
* Engine idle alert / low power alert (optional) / external power cut off alert
* Anti-temper designed
* High speed ARM9 microcontroller
* Anti-robbery with SOS button, press and call for help
* Power saving design, save GPRS data flow
* get real time street address name and Google map link by SMS
* support multiple Geo fence setting and in/out fence alarm
* Over-speed alarm, external power cut off alarm, anti tempered
* Suitable for both Motorcycle / Vehicle
* Inbuilt 4MB data logger for GSM/GPRS blind area
* With 650mAh inbuilt rechargeable battery
* support 4G network
* support harsh acceleration/braking alarm
* support active/passive RFID for anti-theft function and driver identification
* Support smart phone RFID, connect smart phone and automatically arm/disarm to protect the vehicle
* support OTA(update new firmware over the air by SMS)
* support cut off engine from remote by SMS/GPRS
* Real time tracking by SMS/GPRS (Web Platform)
* support microphone and speaker customizable for two way communications
* support crash sensor for accident alarm
* support fuel sensor to manage fuel level
* Mini size, waterproof, built-in antennas for easy installation and concealment
* Engine idle alert / low power alert (optional) / external power cut off alert
* Anti-temper designed
* High speed ARM9 microcontroller
* Anti-robbery with SOS button, press and call for help
* Power saving design, save GPRS data flow
* get real time street address name and Google map link by SMS
* support multiple Geo fence setting and in/out fence alarm
* Over-speed alarm, external power cut off alarm, anti tempered
* Suitable for both Motorcycle / Vehicle
* Inbuilt 4MB data logger for GSM/GPRS blind area
* With 650mAh inbuilt rechargeable battery
Tracking Platform
Web base : www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: officetest1
Password: 123
Packing & Delivery
Our Service
* Provide 2 free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
Want to Know more details about this product
