37 VDC Car GPS Tracker With Fuel Monitoring Temperature Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | Topshine/OEM/ODM |
| Certification: | ce, FCC, RoHS |
| Model Number: | VT200B |
Payment & Shipping Terms:
| Price: | $49.00/Pieces 1-199 Pieces |
|---|---|
| Packaging Details: | Neutral color box(14.5*14*4.5cm) or Neutral white box(15*16*4.5cm) |
| Supply Ability: | 10000 Unit/Units per Month |
|
Detail Information |
|||
| Type: | GPS Tracker | Placement: | PORTABLE |
|---|---|---|---|
| OS: | WinCe 6 | Screen Type: | No Screen |
| Resolution: | 1280*720 | Function: | Other, Remote Control, Distance Warning, Speed Warning, Driver ID Identify, Two Way Location, Smart Phone Blutooth, Automatically Arm/disarm The System, Engine Cut-off, Voice Listening In, Support Temperature Sensor, Monitor Fuel Value, Limit The Vehicle S |
| Combination: | Other | Connection: | 2G Sim Card |
| Warranty: | 2 Years | Use: | Automotive |
| Dimesion: | 75*53*25mm | Weight: | 92g |
| I/O: | 3 Inputs, 2 Outputs | Data Logger: | 2MB |
| Built-in Battery: | 650mAh | Input Voltage: | 9-37 VDC |
| Sos Button: | Yes | Fuel Monitoring: | Cuttable/Ultrasonic Fuel Sensor |
| 2g/3G Type: | Optional | Power Saving: | Yes |
| Port: | GuangZhou | ||
| High Light: | 37 VDC Car GPS Tracker,Temperature Sensor Car GPS Tracker,Fuel Monitoring Car GPS Tracker |
||
Product Description

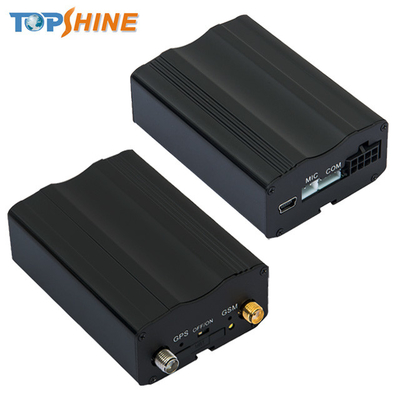

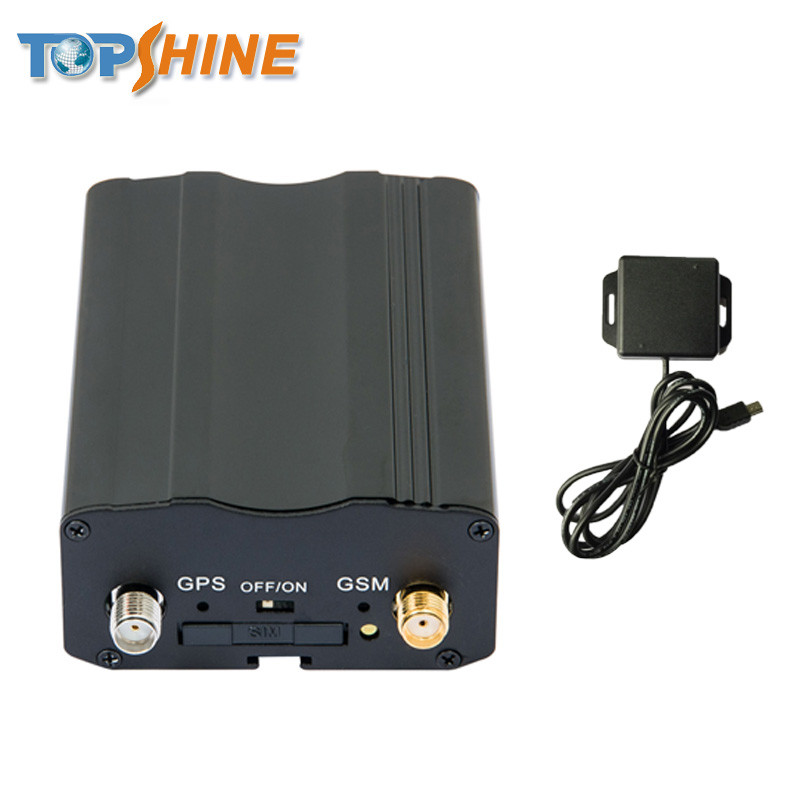

Car GPS Tracker with Fuel Monitoring/Temperature Sensor
Products Description
2G/3G Car GPS tracker with Fuel Monitoring/Temperature sensor
|
Items
|
Specifications
|
|
Dimension
|
75*53*25mm
|
|
Weight
|
92g
|
|
Input voltage
|
DC 9V~37V/1.5A
|
|
Back-up Battery
|
650mAh/3.7V
|
|
Power Consumption
|
65mA standby current
|
|
Operating Temperature
|
-20°C~55°C
|
|
Humidity
|
5%~95%
|
|
Battery Work Time
|
33 hours in power-saving mode and 8 hours in normal mode
|
|
LED
|
2 LED lights to show GPS, GSM status
|
|
Button
|
1 SOS and 1 power on/off
|
|
Microphone
|
Default
|
|
Memory
|
2M Byte
|
|
Sensor
|
Motion sensor
|
|
GSM Frequency
|
Module E:
UMTS/HSDPA 900/2100MHz GSM 900/1800MHz Module A: UMTS/HSDPA 850/1900MHz GSM 850/900/1800/1900MHz Module T: 850/2100MHz |
|
GPS Chip
|
Latest GPS SIRF-Star III Chipset
|
|
GPS Sensitivity
|
-161dB
|
|
Positioning Accuracy
|
10meters, 2D RMS
|
|
I/O
|
3 Input
1 Analog Input Detection 2 Output 1 USB port |
Details Images
Functions of VT200:
*Engine cut-off to stop the car in safe condition
* SOS panic button for alarm
* Microphone for wiretapping
* Temperature sensor (Optional)
* Crash sensor (Optional)
* Fuel sensor to monitor fuel value (Optional)
* ARM/DISARM vehicle by SMS,trigger alarm if engine on /open car door under ARM status
* Real time tracking via SMS or GPRS (TCP/UDP)
* Auto tracking by Time/Distance/Angle interval (Web Platform)
* Get position Google Map link / street name via SMS
* Internal 2MB Data logger for GSM/GPRS network blind area
* Built-in motion sensor for power saving
* Geo-fencing alarm / Over-Speed alert/external power cut off alarm
* Internal 650mAh backup battery
* SOS panic button for alarm
* Microphone for wiretapping
* Temperature sensor (Optional)
* Crash sensor (Optional)
* Fuel sensor to monitor fuel value (Optional)
* ARM/DISARM vehicle by SMS,trigger alarm if engine on /open car door under ARM status
* Real time tracking via SMS or GPRS (TCP/UDP)
* Auto tracking by Time/Distance/Angle interval (Web Platform)
* Get position Google Map link / street name via SMS
* Internal 2MB Data logger for GSM/GPRS network blind area
* Built-in motion sensor for power saving
* Geo-fencing alarm / Over-Speed alert/external power cut off alarm
* Internal 650mAh backup battery
Tracking Platform
Web base : www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: officetest1
Password: 123
Packing & Delivery
Our Service
* Provide 2 free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /FedEx /TNT /ARAMEX/EMX
Lead time: Samples within 1 day of delivery.bulk production within 5-7days of delivery.
Shipping Term: DHL /FedEx /TNT /ARAMEX/EMX
Lead time: Samples within 1 day of delivery.bulk production within 5-7days of delivery.
