ODM 350w Full Suspension Mountain E-Bike with 7/21/24/27 Speed

ODM 350w Full Suspension Mountain E-Bike with 7/21/24/27 Speed

Product Details:

Place of Origin: China
Brand Name: Topshine(support OEM/ODM)
Certification: ce
Model Number: TSMB02

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Price: $525.00/Pieces
Packaging Details: One E-bike one carton,Unit weight: 25Kg,Pack carton: 148*23*75cm
Delivery Time: 1-8 work days
Payment Terms: T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Unit/ per Month, E-bicycle sample is available
Get Best Price Contact Now

Detail Information

Range Per Power: > 60 Km Frame Material: Aluminum Alloy
Wattage: 250W/350W Max Speed: 20-40kn/h
Voltage: 36V/48V Power Supply: Lithium Battery
Software: Free Tracking E-bike Platform Tire: 26 *1.95
Suspension: Front Fork Brake: F/R Dis-brake
Derailleur: 7/21/24/27 Speeds Remote Lock Motor: Support
Remote Send E-messages: Support Hydronic Brake: Optional
Motor: Brushless Foldable: No
Port: GuangZhou
High Light:

ODM Mountain E-Bike

,

350w Mountain E-Bike

,

350w full suspension e bike

Product Description


Topshine Electric bicycle = Electric power assist system + GPS tracking system + ebike alarm system + Stereo Music box + Motion evaluation system


Two Speedometer Display optional: we provide two type of e bike speedometer for equiping with the bike, GPS music speedometer(TSGB02) and GPS colorful speedometer(TSGB03), each of them are very fresh and have unique features, clients can select them to equip with theirs bike as they like.




What is Motion evaluation system?

1. Riding Time statistics of different riding modes: If choose TSGB03 , it can help users calculate the riding duration under different riding modes, and can well help users count their riding time so that they can evaluate their exercise time and effect.

2. Calorie consumption Report: It can help users count the calorie consumption under different riding modes, so as to help users master the effect of their exercise and fitness.

What is ebike alarm system?

Topshine eBike provide user ID identify enter features and remote cutting power function (TSGB03), it prevent illegal user to startup ebike and when ebike is robbed, it support to cut motor power remotely and slowly down the bike too. these functions is never see in traditional ebike.

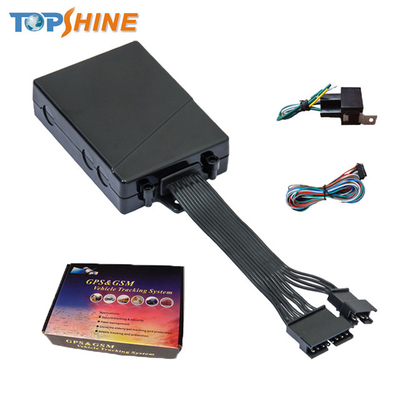

What is GPS tracking system?

It is global gps tracking system, with this system, you can track your bike or your family bike anytime anywhere in the world. other hand you can send command to control your bike too.



Demo account: www.track-car.com
User: ebike
Password: 123



What is Stereo Music box?

Topshine eBike provide a speedometer(TSGB02) with a music playback system. This is a new concept product, which is very different with the traditional speedometer. It provides a stereo music player. Users can play their favorite music anytime and anywhere, so that long-distance riding will not be dry and boring.


This smart riding system provides us with an enjoyable hassle-free riding experience in all environments.


ODM 350w Full Suspension Mountain E-Bike with 7/21/24/27 Speed 1
E-bike music GPS speedometer: It have built in GPS chip,it can real time detect battery capacity, riding speed, compass, time, GPS, GSM, temperature, total mileage, altitude etc

Key features:
1. Stereo HI-FI speaker
2. Built in 2,000mAh battery(optional)
2. MP3/Bluetooth player selection
3. Hand-free phone
5. Online GPS tracking
6. Electronic compass
7. Remote Disable motor function
8. Receive and showing e-Message on the LCD
9. Time, Date and Alarm clock function
10. Real time ambient temperature detection
11. Real time altitude detection
12. Remote e-bike diagnosis
13. Local diagnosis show on LCD
14. Check latitude and longitude on LCD
15. Touch keyboard instead of traditional mechanical keyboard to extend service life of the keyboard and good waterproof;
16. Trip Riding time and History Riding time report
17. Trip Odometer and History Odometer report
18. Max speed and average speed report
ODM 350w Full Suspension Mountain E-Bike with 7/21/24/27 Speed 3
ODM 350w Full Suspension Mountain E-Bike with 7/21/24/27 Speed 4
Specification
Appearance

Product model
Mountain electric bicycle TSMB02C
Color
Black/white
Product parameters

Frame
6061 high density aluminum alloy, rear shock absorber
Crank sprocket
Aluminum alloy crank, hight stength ultra light, chain plate is gold transmission
Tire
26*1.95 Aluminum magnesium alloy wheel rim
Saddle tube
Aluminum and magnesium alloys
Brake
Front / rear disc brake
Suspension
Front fork suspension
Dreailleur
7/21/24/27 speed gears
RIM
Magnesium alloy A/V
Wheel size
26inch
Weight
25kg
Hydronic brake
Optional
Front / rear light
Optional
E-bike odometer
Optional
Basket
Optional
Fender apron
Optional
Power

Power system
Inertial cruise + electric power assist + smart uphill power system + GPS locating system
Controller
Double system controller
Voltage
36V/48V
Motor rated power
250w/350w
Speed
35M/H
Max climbing
15 degrees
Battery parameters

Battery capacity
Imported LG lithium 36V/ 48V 8Ah/10Ah
Recharge mileage
60-90km
Charge time
3-5 hours



Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1) Delivery time:
- Samples within 1-4 days of delivery, bulk production within 5-20days to delivery.

2) Packing:
-One set per standard export carton
-According to customer's request.

3) Warranty:
-Frame Warranty against manufacturer defects, 1 year
-Components Warranty against manufacturing defects, 1 year

4) Shipping Term:
- Express / Air / railway / sea transportation

5) Payment Term: PayPal /Western union / money gram /TT / ALIBABA insurance /RMB

ODM 350w Full Suspension Mountain E-Bike with 7/21/24/27 Speed 6
ODM 350w Full Suspension Mountain E-Bike with 7/21/24/27 Speed 8

FAQ
1. Q: Can I get samples?
A: Yes, samples are available for you to check quality.

2. Q: Do you have products in stock?
A: Yes, we have.

3.Q: How does your factory perform quality control?
A: Internal inspection adopted, including IQC(Incoming Quality Control), IPQC(Input Process Quality Control), OQC(Output Quality Control). Third party inspection is welcomed.

4. Q: Can I put my own LOGO on the products?
A: Yes. You can put your own LOGO on the products and also for the packing.

5. Q:What's your warranty terms?
A: two years warranty.

6. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Surely, you will receive the goods as confirmed. We are looking for long term business instead of one time business. Mutual trust and double wins are what we expect.
