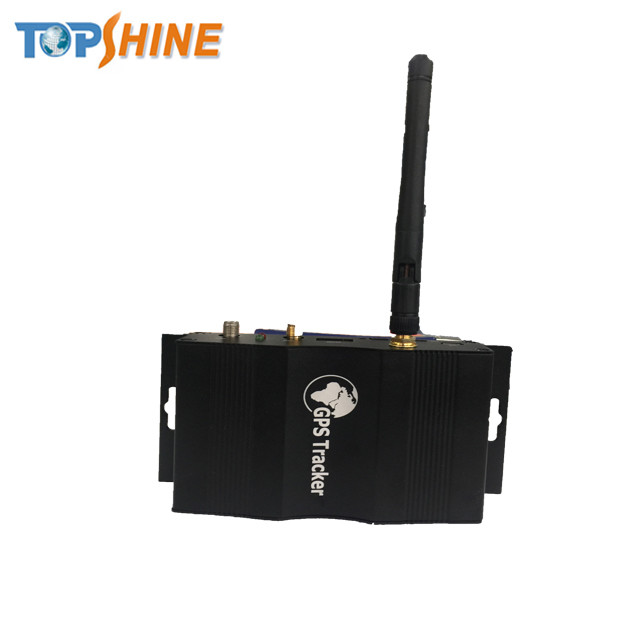

Ultrasonic Fuel Sensor 4G WIFI Hotspot GPS Tracker Without Drill The Hole
Product Details:
| Place of Origin: | China |
| Brand Name: | Topshine(Support OEM/ODM) |
| Certification: | CE,RoHS |
| Model Number: | VT1000W-4G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | $105.00/Pieces |
| Packaging Details: | Neutral color or white box (22*16.5*5.5cm), Unit weight: 0.62Kg, 32 units/Carton |
| Delivery Time: | 1-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 100000 Unit/Month |
|
Detail Information |
|||
| Fuel Consumption: | Ultrasonic Fuel Sensor | WIFI Hotspot: | For Video Camera |
|---|---|---|---|
| RFID: | Car Alarm And Driver Identify | Alarm: | Oil Leaking/Refuel Alarm |
| Memory: | 4MB Data Logger | Software: | Free Tracking Platform |
| High Light: | 4G WIFI Hotspot GPS Tracker,Ultrasonic Fuel Sensor GPS Tracker |
||
Product Description
Ultrasonic fuel sensor 4G WIFI hotspot GPS tracker without drill the hole
4G Vehicle GPS Tracker+ ultrasonic fuel sensor:
We offer new fuel monitoring solution, except the accurate fuel report for fleet management purpose, it supports oil leaking alarm and refuel Alarm, when the tank lose fuel in a short time, we will be informed immediately via SMS/ computer.
We don't need to worry about our fuel to be theft, we can tracking the fuel consumption online, which will save your cost at large scale, at the same time, improve your efficiency for fleet management or taxi dispatch.
Benefits
- Reduce fuel consumption;
- Reduction of fuel cost;
- More security and safety;
- Prove of fuel consumption;
- Improve work efficiency;
- Improve fleet management and cost control
Accessories
| Standard accessories | |
| Main unit 4G WIFI VT1000 | WIFI antenna |
| Microphone | GPS antenna |
| 12V/24V relay | GSM antenna |
| 16pin wiring | |
| Optional accessories | |
| Ultrasonic fule sensor | Video camera |
| Temperature sensor | SD card |
| Impact sensor | OBDii connector |
| Alcohol sensor | Speed limiter |
| Weight sensor | Speaker |
| Passive RFID & card | USB configuration cable |
| Active RFID & tag | |
Specification
| Item | Specifications |
| Dimension | 110*80*30mm |
| Weight | 180g |
| Input voltage | DC +9V~+60V/1.5A |
| Back-up Battery | 850mAh |
| Velocity | 515 meters/second (1000 knots) max |
| Operating Temperature | -40°C~75°C |
| Humidity | 5%~95% Non-condensing |
| Altitude Limit | 18,000 meters (60,000 feet) max |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS Button |
| Microphone | Default |
| Cold start | 29sec., average |
| Hot Start | 1 sec., average |
| 4G GSM Frequency | LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| GPS Sensitivity | -160dB |
| Positioning Accuracy | 5meters, CEP |
| GPS Frequency | L1, 1575.42 MHz |
| Channels | 20 channel all-in-view tracking |
| Velocity Accuracy | 0.1m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Flash Memory | 4 MB |
| I/O | 5 Input, 5 Output, 1 Camera Port, 4 Analog Input, 1 RS232 Port, 1 MIC& Speaker Port, 1 USB Port, 1 SD Card Slot |
Features
* Vehicle WiFi hotspot
* Providing WiFi internet access for passengers
* Support 20+ WiFi camera for real-time video monitoring
* Store video into SD card
* Professional video monitor APP
* Support 1 RS232 camera for taking photo
* Store photo into SD card and tracking platform
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Get position location via call/SMS
* Engine on/off detection
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Door open/close status detecting/ control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
Alerts & Optional Functions
* Over speed alert
* Geo-fence alert
* Door open alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alert
* Suddenly acceleration/brake alert
* Accident Alarm (optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Support max 64G SD card store (optional)
* Photo with location & driving information log function (need camera support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions
(movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor
manage (optional)
