Mini 9V SMS GPRS GPS Vehicle Tracker Tracking Device 2G For Anti-Hijack
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Topshine/Neutral |
| Certification: | ce, FCC, RoHS |
| Model Number: | OGT01 |
Payment & Shipping Terms:
| Price: | $50.00/Sets 1-99 Sets |
|---|---|
| Packaging Details: | Unit weight: 0.06Kg<br>Neutral color or white box<br>(12*8*3.5cm) |
|
Detail Information |
|||
| Model: | TT | Year: | 1989- |
|---|---|---|---|
| Type: | GPS Tracker | Placement: | OBD Port |
| Car Fitment: | AEBI | OS: | No System |
| Screen Type: | NO | Resolution: | 1280*480 |
| Function: | Vehicle Tracking | Combination: | Vehicle Tracking |
| Connection: | 2G Sim Card | Warranty: | 2 Years |
| Use: | Automotive | Free GPS Tracking Platform: | Web Base & Android APP |
| Detect Engine On/ Off Status: | Support | Remote Diagnostics Vehicle: | Support |
| Can Be Customize: | Yes | Double SIM Card: | Support |
| Weigh: | 40kg | GSM Module: | Quectel M35 |
| Dimension: | 70*45*25CM | Inbuilt Data Logger: | 2MB |
| Voltage: | 9V DC -24V DC | ||
| Highlight: | SMS GPS Vehicle Tracker,9V GPS Vehicle Tracker,gps sms gprs tracker |
||
Product Description

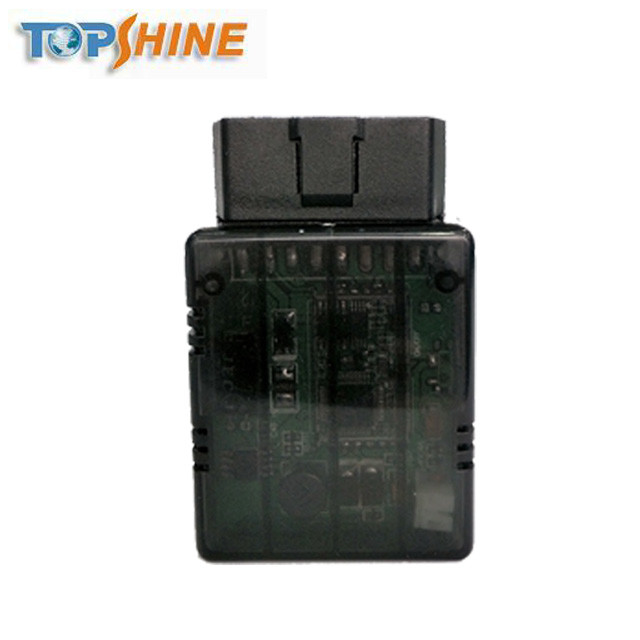

Mini Size Competitive OBD GPS Tracker Inbuilt Data Logger for GSM/GPRS Blind Area
(Model: OGT01)
(* Free GPS Tracking Platform * 2 years warranty * 1 day delivery * High Quality * Factory price )
1.Product Overview
OGT01 is a play and plug OBD tracker or Dual SIM OBD tracker which can detect engine on oroff status, also can remote diagnostics vehicle data,then generate OBD report in the tracking platform. Mini size, built-in antennas, easy to be installed and concealed, therefore can satisfy tracking and security demands for vehicles.
2. Applications
Vehicle Real Time Tracking
Vehicle Security/Anti-Hijack
Fleet Management
3. Specification
|
Items |
Specifications |
|
Dimension |
70*45*25mm |
|
Weight |
40g |
|
Input voltage |
DC +9V~+36V/1.5A |
|
Velocity |
515 meters/second (1000 knots) max |
|
Operating Temperature |
-20°C~75°C |
|
Humidity |
5%~95% Non-condensing |
|
Altitude Limit |
18,000 meters (60,000 feet) max |
|
LED |
2 LED lights to show GPS, GSM status |
|
Cold start |
42sec., average |
|
Hot Start |
1 sec., average |
|
GSM Frequency |
Quad Band (GSM 850/900/1800/1900MHz) |
|
GPS Sensitivity |
-159dB |
|
Positioning Accuracy |
10meters, 2D RMS |
|
GPS Frequency |
L1, 1575.42 MHz |
|
C/A Code |
1.023 MHz chip rate |
|
Velocity Accuracy |
0.1m/s |
|
Time Accuracy |
1 us synchronized to GPS time |
|
Default datum |
WGS-84 |
|
Reacquisition |
0.1 sec., average |
|
Flash Memory |
2 MB
|
Function:
* Remote diagnostics vehicle data,for example throttle Open,Engine Speed Averag Fuel,Temperature,Live Load ,Error Code ect data,then generate OBD report in the tracking platform
* Double SIM card tracker can traveling different country consistently
* Detect engine on/ off status
* Inbuilt 2MB data logger for GSM/GPRS blind area
* LBS/GPS Two way locating,still show position
on map when there is no GPS signal
* Integrated devices of diagnose vehicle and GPS tracking
* Integrated internal GPS & GSM antenna
* Waterproof, mini size, easy installation;
* Design for vehicles with OBD port
* Working voltage: 9V DC -24V DC;
* Real Time tracking by SMS/GPRS (Web platform)
* Auto tracking by SMS/GPRS (TCP/UDP supported),track by time or distance interval;
* Tracking via PC platform or Android APP
* Locate by SMS with Google map's link;
* Get actual address name by SMS
* Movement alert which can be used as an alarm;
* Arm/Disarm by SMS or Call
* Geo-fence, over-speed & anti-amber;
* Odometer report function;
Web base : https://www.track-car.com/
Mobile Phone: www.track-car.com/M
User name: officetest
Password: 123
Web-based GPS Tracking Platform GPRS01
Android APP GPS tracking platform
Our company advantage :
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
Certificate :
om
Topshine Company
Why the Quality of our GPS tracker is better than others :
We use 100% made of industrial-grade component,GSM module have certified(CE2200) FCC and with legal IMEI code,High quality GPS/GSM module can bear temperature -20°C~75°C,Longer working life.
