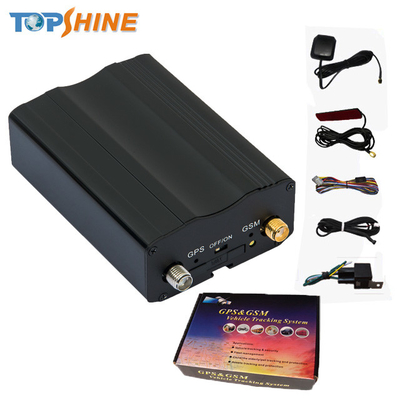

Real Time Vehicle GPS Vehicle Tracker Devices VT200 With Ultrasonic Fuel Sensor
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | Topshine/Neutral |
Certification: | ce, FCC, RoHS |
Model Number: | VT200 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 sets |
---|---|
Price: | $30.00/Sets-$49.00/Sets |
Packaging Details: | Neutral box (23*16*6cm) Unit weight: 0.28Kg |
Delivery Time: | sample within 1-3 days,bulk order within 3-10 days |
Payment Terms: | Western Union, T/T, MoneyGram,PayPal |
Supply Ability: | 10000 sets monthly |
Detail Information |
|||
Data Logger: | Built-in 4MB Data Logger | Fuel Sensor: | Fuel Monitoring Consumption/fuel Report |
---|---|---|---|
RFID: | Car Alarm Anti Theft And Driver Identification | Alcohol Sensor: | Alcohol Alarm |
GPRS Internet: | 2g | Relay: | Cut Off Engine Remotely |
Sos Button: | Sos Alarm | GPS Tracking Software: | Web Base/Android/ Ios APP |
Microphone And Speaker: | Two Way Communicate | Acc Detection: | Engine On/off Status |
Over Speed: | Over Speed Alarm | Warranty: | 2 Years |
Geo Fence: | Geo Fence Alarm | Firmware Update: | USB |
Input Voltage (V DC): | 9 ~ 36V | ||
Highlight: | Real Time OBD GPS Vehicle Tracker,Ultrasonic GPS Vehicle Tracker VT200,VT200 OBD Vehicle Tracker Devices |
Product Description
GPS tracker VT200 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules,
VT200 has good sensitivity and stable performance. Especially, VT200 is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customers or manage their fleet.
GPS tracker VT200 have built in BT chip which can achieve smart car alarm and driver identify, it can use for fleet management, also generate one driver report on the tracking platform.
Advanced smart BT tracker can achieve fully automatic anti-theft alarm and driver ID identify functions, a highly cost-effective tracking device for all kinds of vehicles, it can be used as a GPS tracker and car alarm, it can Arm/Disarm automatic by BT, also have ACC is on/Door is open/Movement alarms to protect vehicles from pilferage.
BT tracker is compatible with original car remoter, don't need to operate two remoters, it can protect vehicle in a easy and comfortable way, we can say, even when the owner leaving the vehicle with door closed but forget to lock it, the system still can Arm automatically and protecting the vehicle from theft. What's more, it is very small in size, easy concealed and installed, an ideal tracker for vehicle tracking and car security.
What is smart car alarm?
When we near the vehicle, our phone will connect with BT tracker automatically, in this moment, vehicle will be disarm immediatelly, When we leave the vehicle, our phone will disconnect with it, then vehicle will be arm automatically.
In the arm status, if someone illegal open the door/ ignition/ movement the vehicle, the tracker will cut off oil automatically, it also will send one alarm SMS and call to our preset mobile number, the siren will sounding at the same time.
What is driver ID identify?
Once our phone connect with BT tracker, BlTnumber will be display on the online tracking platform, then we can know who drive which vehicle. Tracking platform also have driver report.
GPS tracker VT200 can work with fuel sensor to real time detect fuel consumption and generate one fuel report on the free GPS tracking platform.
Application
1. Vehicle tracking & security
2. Fleet Management
3. Equipment tracking
4. Asset tracking
5. RFID automatical anti-theft(optional)
Specification
Items | Specifications |
Dimension | 75*54*25mm |
Weight | 123g |
Charging Voltage | 9V~24V |
SIM card type | 3V |
Power consumption | Active mode(peak) < 1.0A Active mode(avg.) < 300mA |
Operating Temperature | -20℃~+ 75℃ |
Humidity | Up to 75% non-condensing |
External Antenna | Connected via 50 coax connector |
External SIM Card | Connected via SIM card connector |
Button | 1 SOS and 1 power on/off |
Microphone | Default |
Transmit Power |
Class 4(2W) for E-GSM 900 and 850 Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900 |
Sensitivity |
-104dBm minimum for E-GSM 900 AND 850 -102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900 |
GPRS |
Multi-slot Class 8(4Rx, 1Tx., 5slot Max.) Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps |
Speech Codec |
Triple rate Codec Half rate—ETS 06.20 Full rate—ETS 06.10 Enhance full rate—ETS 06.50/06.06/06.08 |
I/O |
2 Digital Inputs ( 1positive triggering and 1negative triggering) 1 Analog Input 2 Outputs |
Features
*Super cost-effective GPS tracker + smart car alarm + two way locator + GSM Jamming detector + driver identifier * Smart phone BT control car alarms,Arm/disarm automatically,do not need to wear any remote or ID card
* Driver identification,illegal driver can not drive the vehicle
* Compatible with the original car remoter * It will be triggered alarm when the car door be opened /be moved /start ignition
*Engine cut-off to stop the car in safe condition
*Voice listening in (Optional)
*Temperature sensor (Optional)
*Ccrash sensor (Optional)
*Fuel sensor to monitor fuel value (Optional)
* Real time tracking via SMS or GPRS (TCP/UDP)
* Auto tracking by Time/Distance/Angle interval (Web Platform)
* Get position Google Map link / street name via SMS
* Internal 2MB Data logger for GSM/GPRS network blind area
* Built-in motion sensor for power saving
* SOS panic button
* Geo-fencing alarm / Over-Speed alert/external power cut off alarm
* Internal 650mAh backup battery
Package and Standard accessory
VT200 GPS trakcer: 1pc
GSM antenna: 1pc
GPS antenna: 1pc
SOS button: 1pc
Wiring: 1pc
Relay(12V/24V): 1pc
Microphone: 1pc
Optional Accessories
Fuel sensor
Temperature sensor
Crash sensor
Smart phone reader
Web base gps tracking platform
Android APP GPS tracking platform
Our Advantage
* Provide 2 free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
