OEM Bluetooth Car Alarms Anti Theft GPS Locator With Free GPS Tracking Platform
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Topshine/Neutral |
| Certification: | ce, FCC, RoHS |
| Model Number: | VT200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | $30.00/Sets-$49.00/Sets |
| Packaging Details: | Neutral box (23*16*6cm) Unit weight: 0.28Kg |
| Delivery Time: | sample within 1-3 days,bulk order within 3-10 days |
| Payment Terms: | Western Union, T/T, MoneyGram,PayPal |
| Supply Ability: | 10000 sets monthly |
|
Detail Information |
|||
| Data Logger: | Built-in 4MB Data Logger | Fuel Sensor: | Fuel Monitoring Consumption/fuel Report |
|---|---|---|---|
| RFID: | Car Alarm Anti Theft And Driver Identification | Alcohol Sensor: | Alcohol Alarm |
| GPRS Internet: | 2g | Relay: | Cut Off Engine Remotely |
| Sos Button: | Sos Alarm | GPS Tracking Software: | Web Base/Android/ Ios APP |
| Microphone And Speaker: | Two Way Communicate | Acc Detection: | Engine On/off Status |
| Over Speed: | Over Speed Alarm | Warranty: | 2 Years |
| Geo Fence: | Geo Fence Alarm | Firmware Update: | USB |
| Input Voltage (V DC): | 9 ~ 36V | ||
| High Light: | OEM Free anti theft gps locator,Bluetooth anti theft gps locator,Anti Theft bluetooth gps locator |
||
Product Description
Application
1. Vehicle tracking & security
2. Fleet Management
3. Equipment tracking
4. Asset tracking
5. RFID automatical anti-theft(optional)
Specification
| Items | Specifications |
| Dimension | 75*54*25mm |
| Weight | 123g |
| Charging Voltage | 9V~24V |
| SIM card type | 3V |
| Power consumption | Active mode(peak) < 1.0A Active mode(avg.) < 300mA |
| Operating Temperature | -20℃~+ 75℃ |
| Humidity | Up to 75% non-condensing |
| External Antenna | Connected via 50 coax connector |

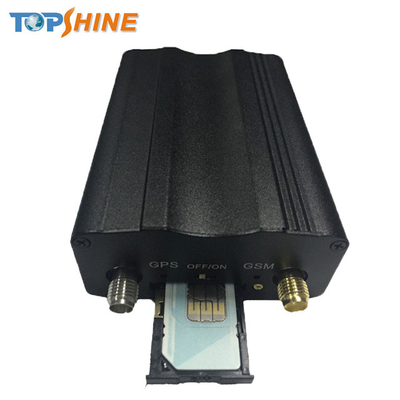

| External SIM Card | Connected via SIM card connector |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Transmit Power |
Class 4(2W) for E-GSM 900 and 850 Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900 |
| Sensitivity |
-104dBm minimum for E-GSM 900 AND 850 -102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900 |
| GPRS |
Multi-slot Class 8(4Rx, 1Tx., 5slot Max.) Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps |
| Speech Codec |
Triple rate Codec Half rate—ETS 06.20 Full rate—ETS 06.10 Enhance full rate—ETS 06.50/06.06/06.08 |
| I/O |
2 Digital Inputs ( 1positive triggering and 1negative triggering) 1 Analog Input 2 Outputs |
Features
* Super cost-effective GPS tracker + smart car alarm + two way locator + GSM Jamming detector + driver identifier * Smart phone BT control car alarms,Arm/disarm automatically,do not need to wear any remote or ID card
* Driver identification,illegal driver can not drive the vehicle
* Compatible with the original car remoter * It will be triggered alarm when the car door be opened /be moved /start ignition
* Engine cut-off to stop the car in safe condition
* Voice listening in (Optional)
* Temperature sensor (Optional)
* Crash sensor (Optional)
* Fuel sensor to monitor fuel value (Optional)
* Real time tracking via SMS or GPRS (TCP/UDP)
* Auto tracking by Time/Distance/Angle interval (Web Platform)
* Get position Google Map link / street name via SMS
* Internal 2MB Data logger for GSM / GPRS network blind area
* Built-in motion sensor for power saving
* SOS panic button
* Geo-fencing alarm / Over-Speed alert / external power cut off alarm
* Internal 650mAh backup battery

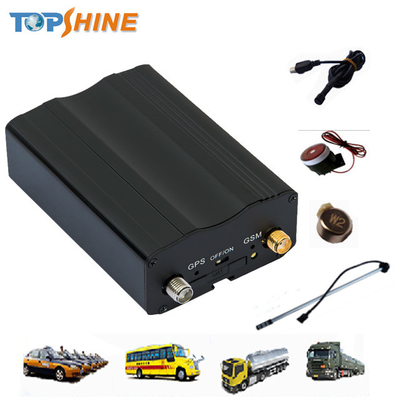

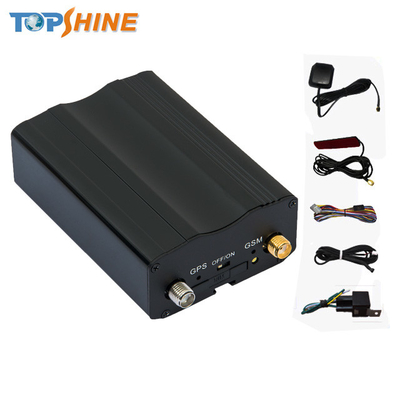

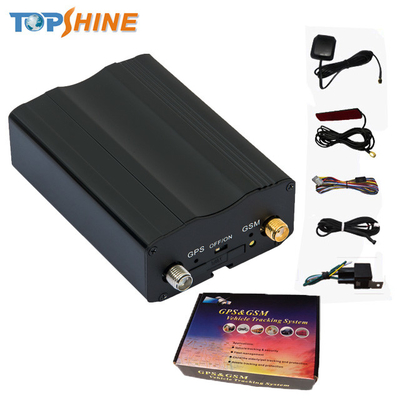

Package and Standard accessory
VT200 GPS trakcer: 1pc
GSM antenna: 1pc
GPS antenna: 1pc
SOS button: 1pc
Wiring: 1pc
Relay(12V/24V): 1pc
Microphone: 1pc
Optional Accessories
Fuel sensor
Temperature sensor
Crash sensor
Smart phone reader
Web base gps tracking platform
Android APP GPS tracking platform
Our Advantage
* Provide 2 free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
