2 IN 1 4G GPS Vehicle Tracker Speed Limiter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Topshine/Neutral |
| Certification: | ce, FCC, RoHS |
| Model Number: | VT310N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | $4900/Sets-$59.00/Sets |
| Packaging Details: | Neutral box (23*16*6cm) Unit weight: 0.58Kg |
| Delivery Time: | sample within 1-3 days,bulk order within 3-10 days |
| Payment Terms: | Western Union, T/T, MoneyGram,PayPal |
| Supply Ability: | 10000 sets monthly |
|
Detail Information |
|||
| Data Logger: | Built-in 4MB Data Logger | Fuel Sensor: | Fuel Monitoring Consumption/fuel Report |
|---|---|---|---|
| Alcohol Sensor: | Alcohol Alarm | GPRS Internet: | 2g |
| Relay: | Cut Off Engine Remotely | Sos Button: | SoS Alarm |
| GPS Tracking Software: | Web Base/Android/ Ios APP | Microphone And Speaker: | Two Way Communicate |
| Acc Detection: | Engine On/off Status | Over Speed: | Over Speed Alarm |
| Warranty: | 2 Years | Geo Fence: | Geo Fence Alarm |
| Firmware Update: | USB | Input Voltage (V DC): | 9 ~ 36V |
| High Light: | Anti Jamming VT310N GPS Vehicle Tracker,VT310N 64GB GPS Vehicle Tracker,VT310N free gps tracker for car |
||
Product Description
Products Overview

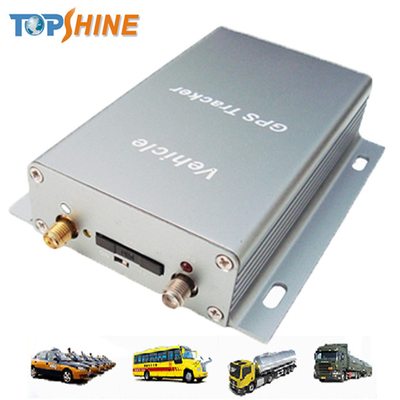

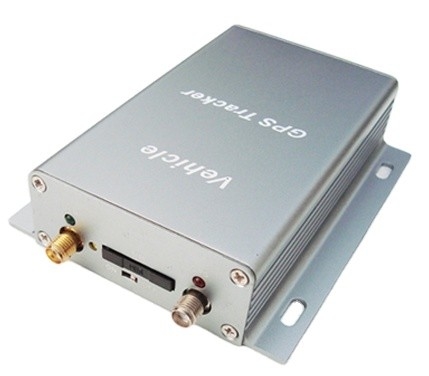

VT310N is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, VT310N has good sensitivity and stable performance. Especially, VT310N is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet.
Application
* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
* Anti jamming
* 3G
Specification
| Technical Parameters: | |
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 105*62*25 |
| Weight | 180g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
| Packing Measures: | |||
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.58 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Feature
| vehicle GPS tracking | Fuel stolen alarm |
| GPS tracker + RFID car alarm | Harsh braking / acceleration alarm |
| GSM jamming detection, anti jamming | With 850mAh inbuilt rechargeable battery |
| Ublox7 GPS industrial high sensitive module | Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc |
| Max 2 fuel sensors, monitor petrol level (Optional) | Powerful and multifunctional tracker for comprehensive Fleet management |
| Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |
| cut off engine remotely ,unlock lock vehicle door | Crash sensor for accident alarm (Optional) |

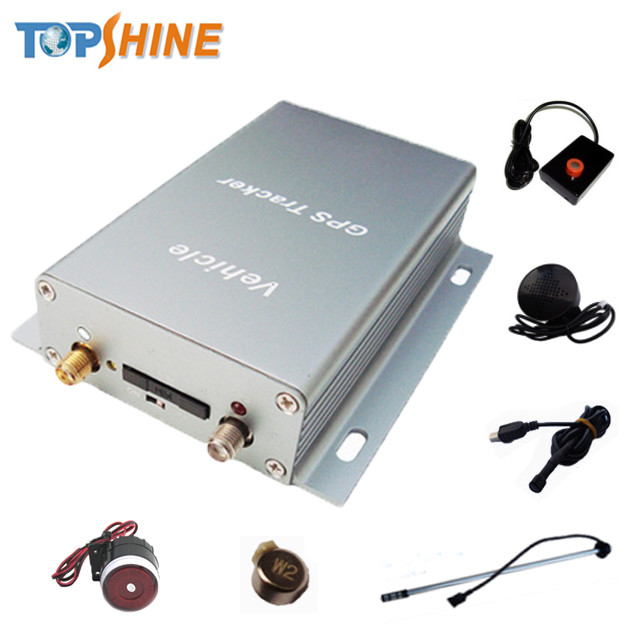

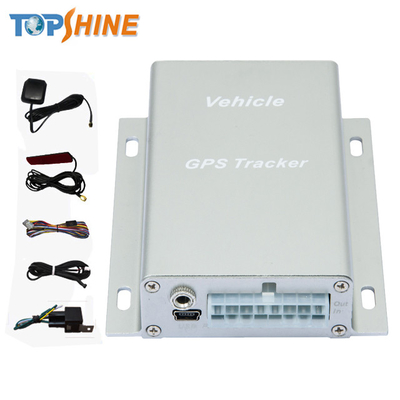

Package & Accessories
VT310N unit: 1 unit
Wire : 1 piece
Relay: 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece
Optional accessory :
* Fuel sensor
* Temperature sensor
* Passive RFID kit
* Crash sensor
* Door sensor
* Alcohol Sensor
