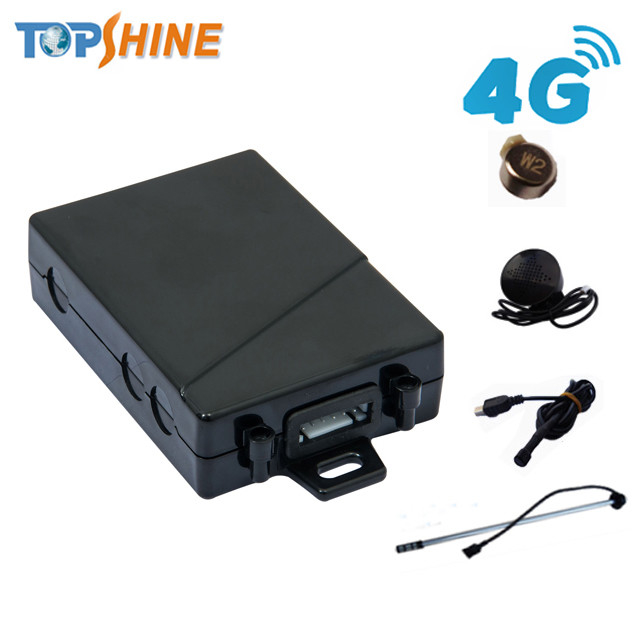

Imei Gps Gsm Tracker Device With Crash Sensor Two Way Communication
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Topshine/Neutral |
| Certification: | ce, FCC, RoHS |
| Model Number: | 4G MT100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | $50.00/Sets-$65.00/Sets |
| Packaging Details: | Neutral box (23*16*6cm) Unit weight: 0.28Kg |
| Delivery Time: | sample within 1-3 days,bulk order within 3-10 days |
| Payment Terms: | Western Union, T/T, MoneyGram,PayPal |
| Supply Ability: | 10000 sets monthly |
|
Detail Information |
|||
| Data Logger: | Built-in 4MB Data Logger | Fuel Sensor: | Fuel Monitoring |
|---|---|---|---|
| RFID: | Car Alarm Anti Theft And Driver Identification | Alcohol Sensor: | Alcohol Alarm |
| GPRS Internet: | Compatible 2g 3G 4G | Relay: | Cut Off Engine Remotely |
| Sos Button: | Sos Alarm | GPS Tracking Software: | Web Base/Android/ Ios APP |
| Microphone And Speaker: | Two Way Communicate | Acc Detection: | Engine On/off Status |
| Over Speed: | Over Speed Alarm | Warranty: | 2 Years |
| Geo Fence: | Geo Fence Alarm | Is_Customized: | Yes |
| Input Voltage (V DC): | 9 ~ 90V | Weight (g): | 85g |
| Size (mm): | 80*58*22 | OBD: | OBD Diagnosis |
| High Light: | Gsm Tracker Device,Imei Gps Tracker Device,Two Way Communication 4G GPS Tracker |
||
Product Description
imei and gps tracker gsm tracker device With Crash Sensor To Way Communication
4G MT100 is a most advanced and high-cost effective GPS tracker,it compatible with 2G 3G 4G Internet.Support,Fuel Sensor,RFID,OBD diagnosis,Temperature Sensor,Two way Communicate,SOS Alarm,Alcohol Sensor,Remotely Stop/Resume Car.OTA,Harsh braking / acceleration alarm, Mini size, built-in antenna and waterproof designed, easy to be installed and concealed,therefore can satisfy tracking and security demands for all kinds of vehicles
Application
* For vehicle tracking and security
* Intelligent fleet management
Specification
| Technical Parameters: | |
| Power Supply | +9V - 90V |
| Backup Battery | 650mAh |
| Dimension | 80*58*22 |
| Installation Dimension | 80*58*22 |
| Weight | 88g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | LTE-FDD B1/B3/B5/B8 B1/B3/B5/B7/B8/B20/B28 LTE-TDD B34/B38/B39/B40/B41 B38/B40/B41 GSM B3/B8 B2/B3/B5/B8 |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Packing Measures: | |||
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.28 | 1 set |
Feature
1.Support 2G 3G 4G network
2.Two way positioning, still show position on map when there is no GPS signal
3.GSM jamming detection, anti jamming
4.Harsh acceleration/braking alert
5.OTA(over the air upgrading)
6.Microphone and speaker for two way communications (optional)
7.Read data out from car ECU via OBD2 connector (optional)
8.ibutton RFID/fingerprint RFID/ Bluetooth RFID/WiFi RFID/passive RFID/active RFID for anti-theft car alarm and driver identification (optional)
9.Remotely cut off engine
10.Fuel sensor for detect oil values ,fuel report (optional)
11.Crash sensor for accident alarm (optional)
12.Power saving design, save GPRS data flow
13.SOS panic button for Anti-robbery
14. authorization alarm phone numbers
15.Inbuilt data logger for GSM/GPRS blind area
16.Real time tracking by SMS/GPRS (Web Platform)
17.Mini size, waterproof, built-in antenna for easy installation and concealment
18.Get real time street name / Google map link by SMS
19. Movement Alert, Geo-Fence Alert, over-speed Alert, external power cut off alarm
20.With 650mAh inbuilt rechargeable battery
Package & Accessories
4G MT100: 1 unit
Wire : 1 piece
Relay: 1 piece
SOS button :1 piece
Optional accessory :
* Microphone
* Speaker
* Fuel sensor
* Temperature sensor
* Crash sensor
* Alcohol Sensor
* RFID kit
* Crash sensor
* OBDII
* Alcohol Sensor
* Speed Limiter
Web base gps tracking platform
Android APP GPS tracking platform
Our Advantage
* Provide 2 free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
Why the Quality of our GPS tracker is better than others :
We use 100% made of industrial-grade component,GSM module have certified(CE2200) FCC and with legal IMEI code,High quality GPS/GSM module can bear temperature -20°C~75°C,Longer working life.
