Customizable Microphone GPS Vehicle Tracker With Fuel Sensor Free Tracking Platform
Product Details:
| Place of Origin: | guanngzhou,China |
| Brand Name: | topshine |
| Certification: | CE;FCC |
| Model Number: | VT310N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 45 |
| Packaging Details: | Neutral Color Box |
| Delivery Time: | Samples within 1 days of delivery.bulk production within 5-7days of delivery. |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10, 000/Month |
|
Detail Information |
|||
| GPS Module: | Ublox 7 | Input Port: | 3 |
|---|---|---|---|
| Onput Port: | 2 | Support Fuel Sensor: | Yes |
| Backup Battery (mAh): | 500 | Ota: | Yes |
| Voltage: | 9~37V | Opened Protocol: | Yes |
| Highlight: | Customizable Microphone GPS Vehicle Tracker,Fuel Sensor GPS Vehicle Tracker,USB Port GPS Vehicle Tracker |
||
Product Description
(2 years warranty, Free Tracking Platfrom (web base & Android),CE & RoHS & SGS certification)
Products Overview

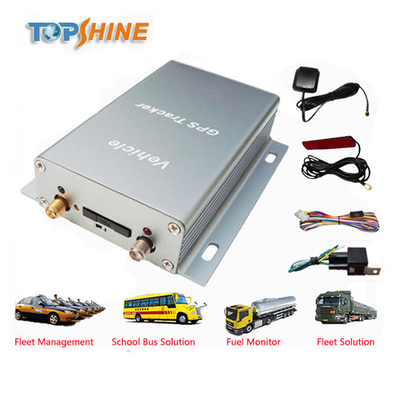

Application
* For vehicle tracking and security
* Intelligent fleet management
Specification
| Technical Parameters: | |
| Power Supply | +9V - +37V / 1.5A |
| Backup Battery | 500mAh |
| Dimension | 105*62*25cm |
| Weight | 95g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
|
Flash Memory |
4MB |
Feature
| Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc | Fuel stolen alarm,monitor petrol level |
| GPS tracker + RFID car alarm | cut off engine remotely |
| GSM jamming detection, anti jamming | With 650mAh inbuilt rechargeable battery |
| Ublox7 GPS industrial high sensitive module | Two way tracking, GPS/intelligent GSM positioning |
| Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function (Optional) | Powerful and multifunctional tracker for comprehensive Fleet management |
| Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |

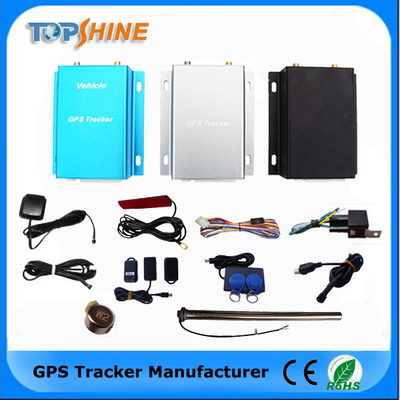

Package & Accessories
VT310N unit: 1 unit
Wire : 1 piece
Relay: 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece
Optional accessory :
* Fuel sensor
* Temperature sensor
* RFID kit
* Crash sensor
* Smart phone reader
* Door sensor
* Alcohol Sensor
* Speed Limiter
Our advantage
* Provide 2 free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery
