Factory Direct Support 90V Motorcycles Car Vehicle 4G GPS Tracker With Free Tracking platform
Product Details:
| Place of Origin: | guangzhou，China |
| Brand Name: | Topshine |
| Certification: | CE;FCC;RoHS |
| Model Number: | 4G MT08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 45/set |
| Packaging Details: | Neutral Color Box |
| Delivery Time: | Samples within 1 days of delivery.bulk production within 5-7days of delivery. |
| Payment Terms: | Western Union, T/T, PayPal |
| Supply Ability: | 10, 000/Month |
|
Detail Information |
|||
| GPS Module: | Ublox 7 | Size (mm): | 50*47*18 |
|---|---|---|---|
| Backup Battery (mAh): | 250 | I/Onput Port: | 2/1 |
| Sos Button: | Sos Alarm | Microphone: | Voice Wiretapping |
| Relay: | Cut Off Engine Remotely | GPS Tracking Software: | Web Base & Android Ios APP |
| Over Speed Alert: | Support | Geo Fence Alert: | Support |
| High Light: | Vehicle 4G GPS Tracker,Motorcycles 4G GPS Tracker,90V 4G GPS Tracker |
||
Product Description
Products Overview:

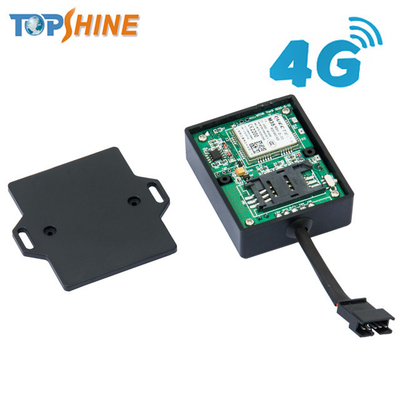

MT08-B is Super competitive 4G GPS tracker can work for Motorcycles/Car/Bus/Truck ect vehicle,support customization;Independent industry GSM/GPS module and Industrial grade CPU;Full certification (FCC,CE,Rohs ) with Legal IMEI code.
Application:
* Vehicle tracking & security
* Motorcycl tracking & security
* Equipment
* Asset
Feature &Function:
| Two way positioning, still show position on map when there is no GPS signal or GPS antenna is cut | GSM signal jamming detection, anti jamming |
| Voice monitoring( optional ) | Harsh braking / acceleration alarm (optional ) |
| Inbuilt data logger for GSM/GPRS blind area (optional ) |
Arm/disarm system by phone call or SMS |
| Real time tracking for motorcycle / private car | mini ,Waterproof,built in antenna ,battery |
| Track by time interval | Remote engine cut off to stop vehicle (Optional) |
| Track by distance interval | SOS emergency alarm (Optional) |
| Track by angle interval | Fuel consumption monitoring (Optional) |
| Online Reports | Engine ON/OFF alarm |
| Geo-fence setting / alarm | Speeding alarm / over speed report |
| Power saving / Sleep mode | Check real address name |
| Check Google Map link | Monitor from online free tracking platfor |
Specification:
| Items | Specification |
| Dimension | 63*50*20mm |
| Weight | 85g |
| GPS Chip | uBlox 7 |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 10 meters, 2D RMS |
| GSM Model | M35 |
| GSM Frequency | GSM850/900/1800/1900MHz |
| Hot Start Warm Start Cold Start |
1sec, average 38sec, average 42sec, average |
| Operating Temperature | - 20 deg C ~ 65 deg C |
| LED | 2 LED lights to show GPS / GSM working status |
| Charge Voltage | 9V~36V |
| Waterproof | Yes |
| Button | SOS button (optional) |
| Sensor | Fuel, temperature, gravity, motion / shock, crash / accident, alcohol, door sensor, etc. |
| Data Logger | 2MB default |
| Input / Output | 2 digital inputs, 1 output, 1 alternative analog input, 1 12V power wire, 1 GND; 1 internal RS-232 USB port |
Package & Accessories
* Main unit
* Fuel sensor
* Relay
| Packing Measures: | |||
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 14.5*14*4.5cm | 0.28 | 1 set |
| Carton | 470x340x310 | 5.6 | 20sets |
Picture:
We provide Free GPS tracking platform ( web base & Android APP )
What can we provide for you :
* Provide free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & FCC certification
* Supply OEM&ODM service.
* Strong engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
