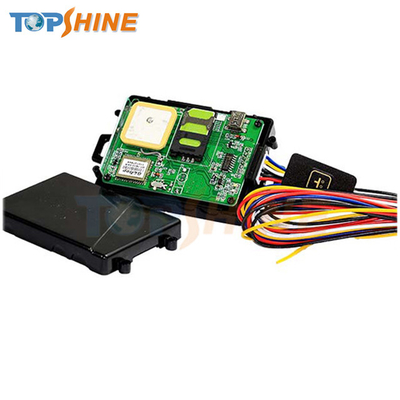

Real Time Tracking 4G GPS Tracker With Sos Fuel Sensor Car Alarm Fleet Management

Real Time Tracking 4G GPS Tracker With Sos Fuel Sensor Car Alarm Fleet Management

Product Details:

Place of Origin: China
Brand Name: Topshine/OEM/ODM
Certification: ce,FCC,RoHS
Model Number: MT01 4G

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Price: $49.00/Sets
Packaging Details: Neutral color box(8*5*2.5cm), Unit weight: 0.18Kg, 100units/Carton
Delivery Time: 1-8 work days
Payment Terms: T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Set/per Month
Get Best Price Contact Now

Detail Information

GSM Module: Legal IMEI &CE Network: 4G Internet Network
Input Voltage: 9-90VDC Software: Free GPS Tracking Platform
Battery: Built-in 500mAh Battery Memory: 2MB
IButton Reader: Smart Car Alarm And Driver Identify Two Way Communication: Speaker And Microphone
Fuel Sensor: Support Harsh Braking Alarm: Support
SOS Button: Support
High Light:

Real Time 4G GPS Tracker


Sos Fuel Sensor 4G GPS Tracker


2MB 4G GPS Tracker

Product Description

Car Alarm Fleet Management Real Time tracking 4G GPS Tracker with sos fuel sensor


Special for ebike, Motorcycle and vehicles Anti-theft


Topshine company offer new fuel monitoring solution, except the accurate fuel report for fleet management purpose, it supports fuel stolen alarm, when the tank lose fuel in a short time, 4G tracker will informed immediately via SMS/ computer.


We don't need to worry about our fuel to be theft, we can tracking the fuel consumption online, which will save your cost at large scale, at the same time, improve your efficiency for fleet management or taxi dispatch.



- Reduce fuel consumption;

- Reduction of fuel cost;

- More security and safety;

- Prove of fuel consumption;

- Improve work efficiency;

- Improve fleet management and cost control

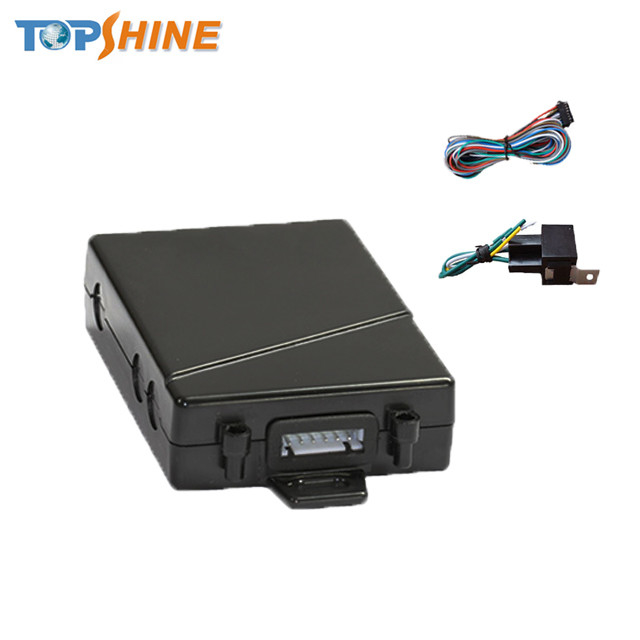

 Standard accessories
 Main unit MT01-4G              Wiring
 12V/24V relay  Built in 500mAh battery



 Optional accessories
 Ultrasonic fuel sensor  Cuttable fuel sensor
 Fatigue camera  Ibutton reader&ibutton tag
 Speaker  Microphone
 Weight sensor  USB cable
 Humidity&temperature sensor  Crash sensor


Physical Dimension 80*58*22mm
Weight 85g
Module 4G CATM
LTE-TDD B34/B38/B39/B40/B41
GSM B3/B8 B2/B3/B5/B8

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

Power Input voltage 9-90V
Battery 500mAh/3.7V
Power consumption

Average Current: <30mA (DC 12V)

Maximum current: <10mA (DC 12V)

Interface Digital input(1) SOS detect
Digital input(4) Ignition detect
Digital output(1) Relay
GSM antenna Internal High Gain
GPS antenna Internal High Gain
SIM Microsim
Indicator 2 status LEDs, Green: GSM, Red: GPS
Memory 2MB
Environmental Parameter Working Temperature -40°C~75°C
Humidity 5% ~ 95% (no fog)


1. Vehicle 4G GPS tracker + humidity&temperature monitor:
It can real time detect humidity and temperature value, also show it on the tracking platform.


2. Vehicle 4G GPS tracker + weight sensor:

Real time detect weight value


3. Vehicle 4G GPS tracker + speaker + microphone

Achieve two way communication


4. Vehicle 4G GPS tracker + ibutton reader

Advanced ibutton reader can achieve fully automatic anti-theft alarm and driver identify functions, a highly cost-effective tracking device for all kinds of vehicles, it can Arm/Disarm automatic by RFID tags or by SMS and Call, also have ACC is on/Movement alarms to protect vehicles from pilferage.
With ibutton reader, the device can Arm/Disarm automatically, compatible with original car remoter, don’t need to operate two remoters, it can protect vehicle in a easy and comfortable way, it is to say, even when the owner leaving the vehicle with door closed but forget to lock it, the system still can Arm automatically and protecting the vehicle from theft. What's more, it is very small in size, easy concealed and installed, an ideal tracker for vehicle tracking and car security.


Ibutton feature:

1. User is swipe the ibutton tag with ibutton reader, if an authorized tag can be detected, vehicle will enter disarm status. If an authorized tag can not be detected, it will send alert SMS “Engine Is On!” to authorized alert mobile phone number, and it will decide to cut off the oil/fuel supply according to its oil cut enable/disable status.
2. If illegal ignition be detected and oil/fuel supply cut off enabled, tracker will cut off the oil/fuel supply immediately, if user can swipe authorized ibutton tag at that moment, it will
restore oil/fuel supply.
3. If the oil/fuel supply is cut off by SMS or GPRS tracking platform, it can not be restored by disarm action.
4. After swipe authorized ibutton tag and ignite the vehicle, tracker will update tag number to GPRS tracking platform,this can achieve driver identify function, we can
know who drive which vehicle.


Real Time Tracking 4G GPS Tracker With Sos Fuel Sensor Car Alarm Fleet Management 0



Product Features

* 4G network tracker

* Fatigue driver alarm (optional)

* Accident alarm (need crash sensor support) (optional)
* Wiretapping/remote listening (optional)

* Two way communication(optional)

* Fuel monitoring(optional)

* Humidity&temperature monitor (optional)

* Ibutton smart car alarm and drive identify(optional)

* Built in 2MB data logger

* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real-time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 500mAh battery
* Remote Engine cut off to stop the car in safe condition
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on the map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; View mileage data via GPS web-based tracking center system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Over speed alert
* Geo-fence alert
* Engine on alert
* Power failure/low power alert
* SOS Panic button, SOS alert
