Fingerprint Driver Identify 4G GPS Tracker For Fleet Management
Product Details:
| Place of Origin: | China |
| Brand Name: | Topshine/OEM/ODM |
| Certification: | ce, FCC, RoHS |
| Model Number: | VT1000-4G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | $75.00/Pieces |
| Packaging Details: | Neutral color or white box (22*16.5*5.5cm), Unit weight: 0.62Kg, 32 units/Carton |
| Delivery Time: | 1-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 10000 Unit/ per Month |
|
Detail Information |
|||
| Fingerprint System: | Smart Car Alarm And Driver Identify | Connection: | 4G Sim Card |
|---|---|---|---|
| Software: | Free GPS Tracking Software | Function: | Remote Control, Distance Warning, Speed Warning, Support OTA, Support OBD II, Two Way Communications, Harsh Braking/Acceleration Alarm, Real Time Positioning, Geo Fence, Power Cut Alarm, Driver ID Identification, Fleet Management, Support Idle Alarm |
| Warranty: | 2 Years | Two Way Talking: | Microphone And Speaker |
| Data Logger: | 4MB Memory | Backup Battery: | 1000mAh |
| Fuel Sensor: | Support | Temperature Sensor: | Support |
| OTA: | Support | RS232: | Support |
| Sos Button: | Support | Port: | GuangZhou |
| High Light: | Fingerprint Driver Identify 4G GPS Tracker,Fleet Management 4G GPS Tracker |
||
Product Description

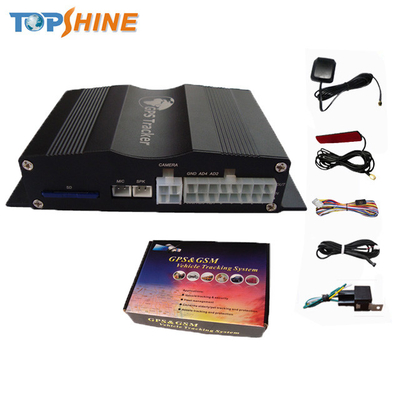

Fingerprint Driver Identify 4G GPS Tracker For Fleet Management
(*Smart car alarm *Driver identify *Industrial grade module *Two way communication)
What is smart car alarm?
Unauthority fingerprint cant drive the vehicle. Once tracker identify unauthority fingerprint, it will trigger relay to cut off engine automatically, send SMS alarm and call to administrator, also trigger siren to sound. (For fleet management)
What is driver ID identify?
Tracker can identify 100 fingerprints, when driver put their fingerprint on the reader, tracker will upload this fingerprint number to GPRS tracking platform, then generate a driver report.
|
Items
|
Specifications
|
|
Dimension
|
130*68*30mm
|
|
Weight
|
197g
|
|
Input voltage
|
DC 12V~90V/1.5A
|
|
Back-up Battery
|
1000mAh/3.7V
|
|
Power Consumption
|
65mA standby current
|
|
Operating Temperature
|
-20°C~75°C
|
|
Humidity
|
5%~95%
|
|
Work Time
|
43 hours in power-saving mode and 10 hours in normal mode
|
|
LED
|
2 LED lights to show GPS, GSM status
|
|
Button
|
1 SOS and 1 power on/off
|
|
Microphone
|
Default
|
|
Memory
|
4M Byte
|
|
Sensor
|
Motion sensor
|
|
GSM Frequency
|
LTE-FDD B1/B3/B5/B8
B1/B3/B5/B7/B8/B20/B28
LTE-TDD B34/B38/B39/B40/B41
B38/B40/B41
GSM B3/B8 B2/B3/B5/B8
|
|
GPS Chip
|
Latest GPS SIRF-Star III Chipset
|
|
GPS Sensitivity
|
-159dB
|
|
Positioning Accuracy
|
10meters, 2D RMS
|
|
I/O
|
5 Input 5 Output 1 Camera Port 4 Analog Input 1 RS232 Port 1 MIC& SpeakerPort
|
Features of tracker VT1000-4G
* GPS tracker + fingerprint car alarm
* Support OTA(Update software over the air firmware by SMS)
* Support SD card data logger
* Support OBD2 connector to read DTC data from ECU car computer
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Ublox7 GPS industrial high sensitive module
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
* Support fuel stolen alarm
* Support max 4 cameras, Photo logger function with location & driving information
* Support crash sensor for accident alarm
*Support idle alarm
* Powerful and multifunctional tracker for comprehensiveFleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery
* Support OTA(Update software over the air firmware by SMS)
* Support SD card data logger
* Support OBD2 connector to read DTC data from ECU car computer
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Ublox7 GPS industrial high sensitive module
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
* Support fuel stolen alarm
* Support max 4 cameras, Photo logger function with location & driving information
* Support crash sensor for accident alarm
*Support idle alarm
* Powerful and multifunctional tracker for comprehensiveFleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery
Accessories of tracker VT1000-4G
| Standard accessories | |
| Main unit VT1000-4G | GSM antenna |
| Microphone | GPS antenna |
| Wiring | 12V/24V relay |
| 1000mAh battery | |
| Optional accessories | |
| Ultrasonic fuel sensor | Snap photo camera |
| Cuttable fuel sensor | Speaker |
| Fingerprint reader | Crash sensor |
| Passive RFID reader & tag | Temperature sensor |
| Ibutton reader & tag | OBDii connector |
| Siren/buzzer | SD card |
