Real Time Tracking Car Truck Bus GPS Tracker With Fuel And Crash Sensor
Product Details:
| Place of Origin: | guanngzhou,China |
| Brand Name: | topshine |
| Certification: | CE;FCC |
| Model Number: | VT310N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 50/set |
| Packaging Details: | Neutral Color Box |
| Delivery Time: | Samples within 1 days of delivery.bulk production within 5-7days of delivery. |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10, 000/Month |
|
Detail Information |
|||
| Specification: | 23*16*6 Cm | GPS Module: | Ublox 7 |
|---|---|---|---|
| GSM Module: | M35 | Voltage: | 9~37V |
| Backup Battery (mAh): | 500 | USB Port: | 1 |
| Input Port: | 3 | Support Carsh Sensor: | Yes |
| Microphone Port: | Customizable | Two Way Communication: | Customizable |
| High Light: | Real Time Bus GPS Tracker,Crash Sensor Bus GPS Tracker |
||
Product Description
(2 years warranty, Free Tracking Platfrom (web base & Android),CE & RoHS & SGS certification)
About Topshine
Topshine Electronic Technology Co.,Ltd is specialize in R&D innovation manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS Tracking System and Integrated GPS Tracking Solutions. We are real GPS tracker manufacturer who have
worked at gps tracker and car electron since 2005 year, we have our own engineer team,they are good at customize for our clients.
Products Overview
Application
* For vehicle tracking and security
* Intelligent fleet management
* Anti jamming
Specification
| Technical Parameters: | |
| Power Supply | +9V - +37V / 1.5A |
| Backup Battery | 500mAh |
| Dimension | 105*62*25cm |
| Weight | 95g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Time Accuracy | 1 us synchronized to GPS time |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
|
Flash Memory |
4MB |
Feature
| Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc | Fuel stolen alarm,monitor petrol level |
| GPS tracker + RFID car alarm | cut off engine remotely |
| GSM jamming detection, anti jamming | With 650mAh inbuilt rechargeable battery |
| Ublox7 GPS industrial high sensitive module | Two way tracking, GPS/intelligent GSM positioning |
| Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function (Optional) | Powerful and multifunctional tracker for comprehensive Fleet management |
| Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |

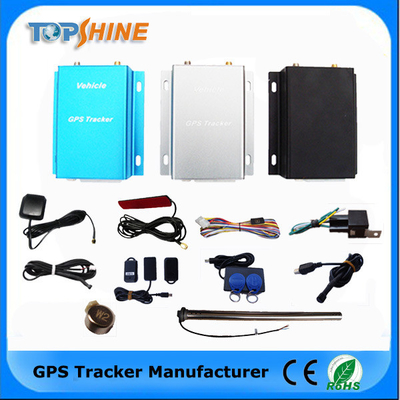

Package & Accessories
VT310N unit: 1 unit
Wire : 1 piece
Relay: 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece
Optional accessory :
* Fuel sensor
* Temperature sensor
* RFID kit
* Crash sensor
* Smart phone reader
* Door sensor
* Alcohol Sensor
* Speed Limiter
Our advantage
* Provide 2 free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery
Welcome to inquiry now!!!
