Product Description

1. Product Overview

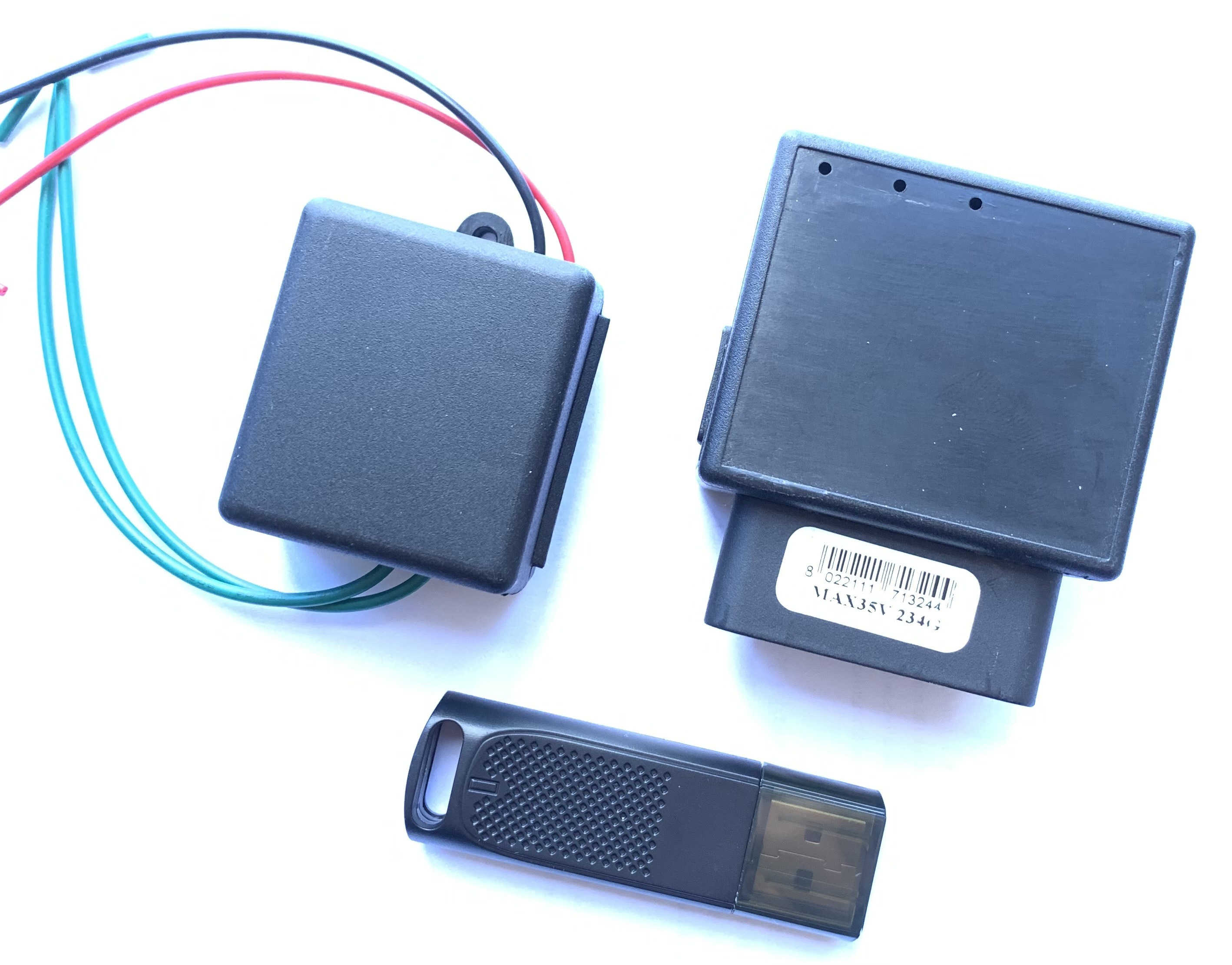

      OGT04 is a kind of mini GPS vehicle tracking product can be used for tracking of car that with OBD port. Mini size, built-in antennas, easy to be installed and concealed, therefore can satisfy tracking and security demands for vehicles.

2. Applications

    Vehicle Real Time Tracking  Vehicle Remote Diagnosis  Fleet Management

3. Features & Functions

* Tracking by SMS/GPRS (TCP/UDP)

* Plug & Play easily install

* Data logger to store 30,000 waypoints.

* Vehicle protection

   Once the OBD tracker is unplugged illegally, the vehicle will not be able to start

* Remote immobile the vehicle

* USB dongle (optional)

  When the tracker is unplugged or not working, plug in the USB dongle to continue starting the vehicle

* Diagnostic trouble codes report (DTC)(optional)

* Anti GSM signal jamming

* Listen in car(optional)

* Tow alarm/Geo fence alarm/Over speed alarm

* Anti-hijacking

* Harsh breaking/Harsh acceleration alarm

* Bluetooth RFID for recognizing legal driver(optional)

* TCP/MQTT/HTTP protocol support

4. CAN Bus protocol support

ISO 15765-4 (CAN)

ISO 14230-4 (Keyword Protocol 2000)

ISO 9141-2 (Asian, European, Chrysler vehicles) SAE J1850 VPW (GM vehicles)

SAE J1850 PWM (Ford vehicles)

ISO 15765 ISO 11898 (raw CAN)

SAE J1939 OBD protocol

5. Hardware parameters

Input voltage range

10–30 V DC with overvoltage and reverse polarity protection

Internal Back-up battery

170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Power consumption

At 12V < 6.5 mA (Ultra Deep Sleep)

At 12V < 8 mA (Deep Sleep)

At 12V < 13 mA (Online Sleep)

At 12V < 16.3 mA (GPS Sleep)

At 12V < 31 mA (nominal)

Network Technology

LTE CAT 1/EGPRS

2G bands B2/B3/B5/B8

4G LTE Cat 1 bands B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85

Data transfer

LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)

GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)

Transmit power

Class 4 for GSM850/900: 23±2dBm

Class 1 for GSM1800/1900: 20±2dBm

Class 3 for LTE-TDD: 23±2.7dBm

Class 3 for LTE-FDD: 23±2.7dBm Data support

SMS (text/GPRS data)

GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver 33 tracking channel 99 acquisition channel Tracking sensitivity -165 dBM

Position Accuracy < 2.5 m CEP Hot start < 1 s Warm start < 25 s Cold start < 35 s Velocity Accuracy < 0.1 m/s (within +/- 15% error)

Weight

63 g

Dimensions

67x 50 x 25 mm (L x W x H)

6. OBD interface

Data K-Line,

CAN bus data Data reading Up to 32 vehicle onboard parameters,

supported OBD protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

7. Interface OBD connector

Standard OBDII Socket

USB port 2.0 Micro-USB

LED indication 2 status LED lights

SIM card slot Micro-SIM

Memory

32MB internal flash memory
